Heathkit SW-717 Assembly

3/8"
S PACTR
---@mr@
*r@
uul,n'
SELF-TAPPING
-/
scRrw

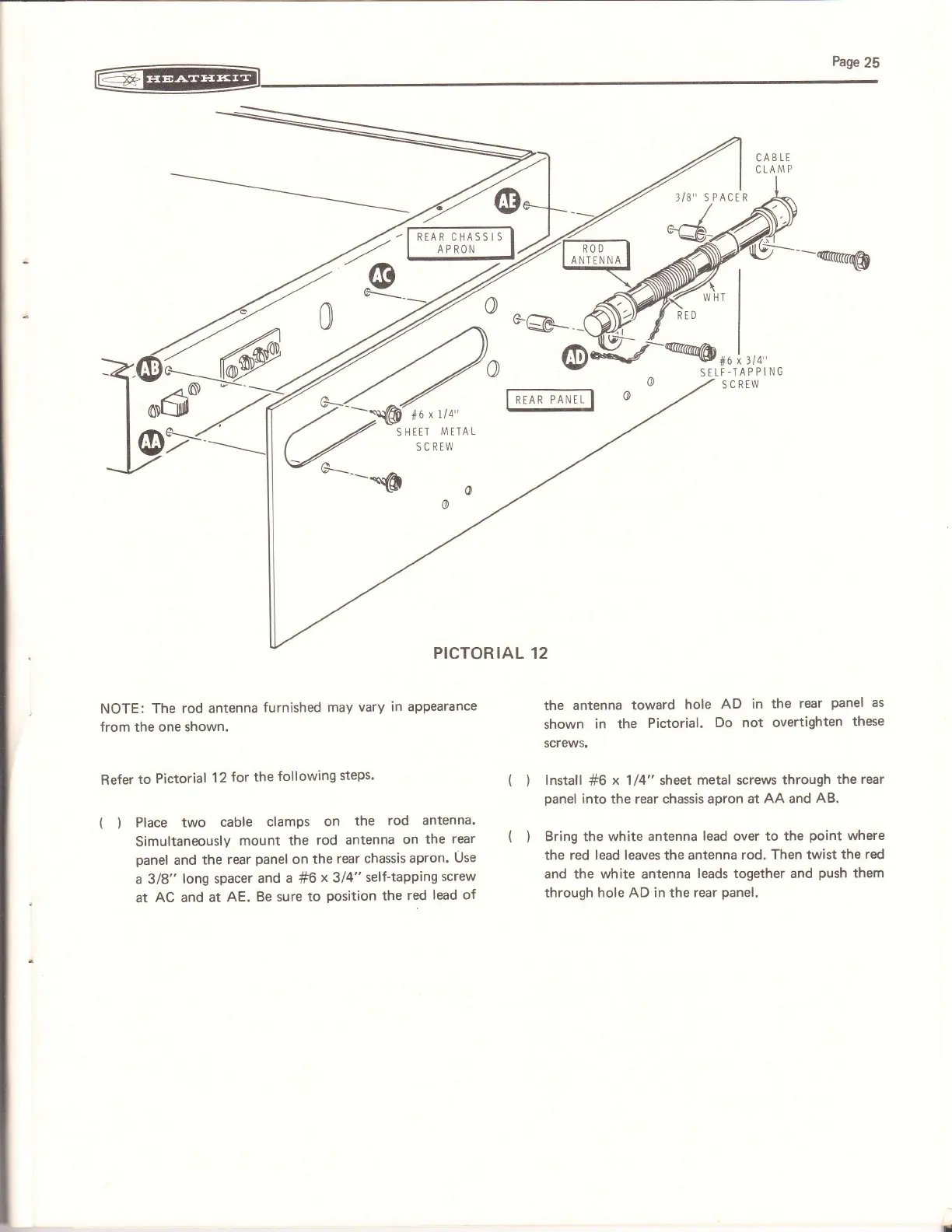

PICTORIAL 12
NOTE:
The rod antenna
furnished may
vary
in appearance
from
the
one shown.
Refer
to
Pictorial
12
for
the
following
steps'
(
)
Place
two
cable
clamps on
the
rod antenna.
Simultaneously
mount the
rod
antenna
on
the
rear
panel
and
the rear
panel
on
the rear
chassis
apron.
Use
a 318"
long spacer
and
a
#6
x 314"
self-tapping
screw
at
AC and at
AE.
Be sure to
position
the red
lead of
the
antenna
toward
hole
AD
in
the rear
panel
as
shown
in
the
Pictorial.
Do not overtighten
these
screws.
lnstaf l
#6
x
114" sheet
metal screws
through
the rear
panel
into
the rear
chassis apron at
AA and
AB.
Bring the white antenna
lead over to the
point
where
the red lead leaves the antenna
rod. Then twist
the red
and the white
antenna
leads together and
push
them
through hole AD
in
the
rear
panel.
()
{)
S HIET
I\lETAL
SCREW
