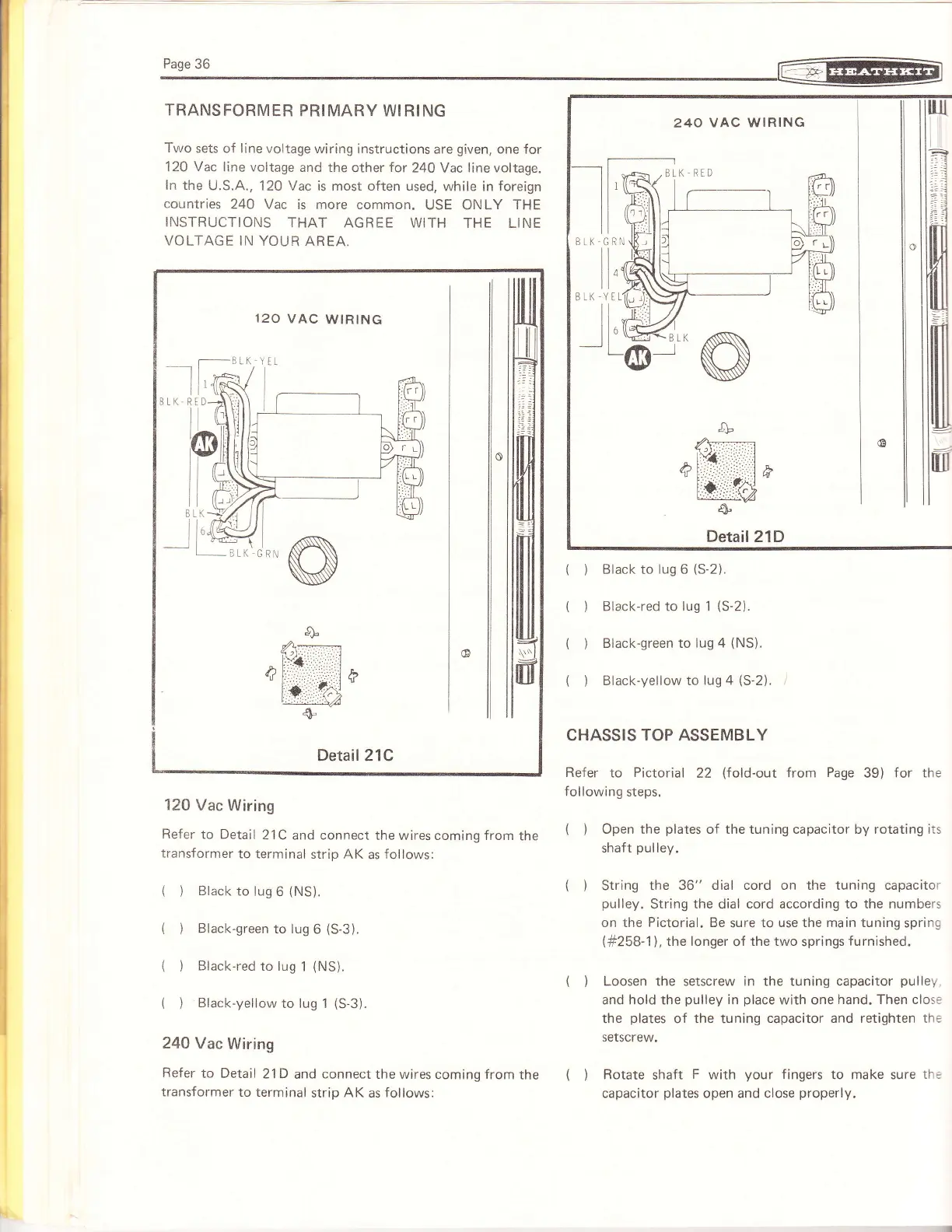

TRANSFORMER
PRIMARY WIRING
Two
sets of line voltage
wiring
instructions are
given,
one for
120 Vac line voitage
and
the other
for
24OYac
linevoltage.
In
the U.S.A., 120
Vac is most often used,
while in
foreign
countries
24O Vac
is more common.
USE ONLY THE
INSTRUCTIONS
THAT AGREE WITH
THE LINE
VOLTAGE IN
YOUR
AREA.
BtK
YII
120
VAC
WIRING
LA
6
Detail2lC
120
Vac
Wiring
Refer
to Detail
21C and connect
the wires coming from
the
transformer
to terminal
strip AK
as
follows:
(
)
Black
to lug
6
(NS).
(
)
Black-green
to lug
6
(S-3).
(
)
Black-red
to
lug 1
(NS).
(
)
Black-yellow
to lug 1
(S'3).
244
Vac
Wiring
Refer
to Detail
21D
and
connect
the
wires coming from
the
transformer
to terminal
strip
AK
as
follows:
)
Black to lug 6
(S-2).
)
Black-red to lug 1
(S-2).
)
Black-green to
lug 4
(NS).
)
Black-yellow to
lug 4
(S-21.
i
CHASSIS TOP ASSEMBLY
Refer
to
Pictorial
22
(fold-out
from
Page
39)
for the
following
steps.
(
)
Open the
plates
of the tuning capacitor by rotating its
shaft
pul
ley.
(
)
String the
36" dial cord on the tuning capacitor
pulley.
String
the
dial
cord according to the numbers
on the
Pictorial.
Be
sure
to use the main tuning
spring
(#258-1).
the
longer
of
the two
springs
furnished.
(
)
Loosen the setscrew in the tuning capacitor
pulley,
and hold the
pulley
in
place
with one
hand. Then close
the
plates
of the tuning
capacitor
and
retighten the
setscrew.
(
)
Rotate
shaft
F
with
your
fingers to make sure
th.
capacitor
plates
open and close
properly,
24U-
VAC WIRING
BLK RED
