Heathkit SW-717 Assembly

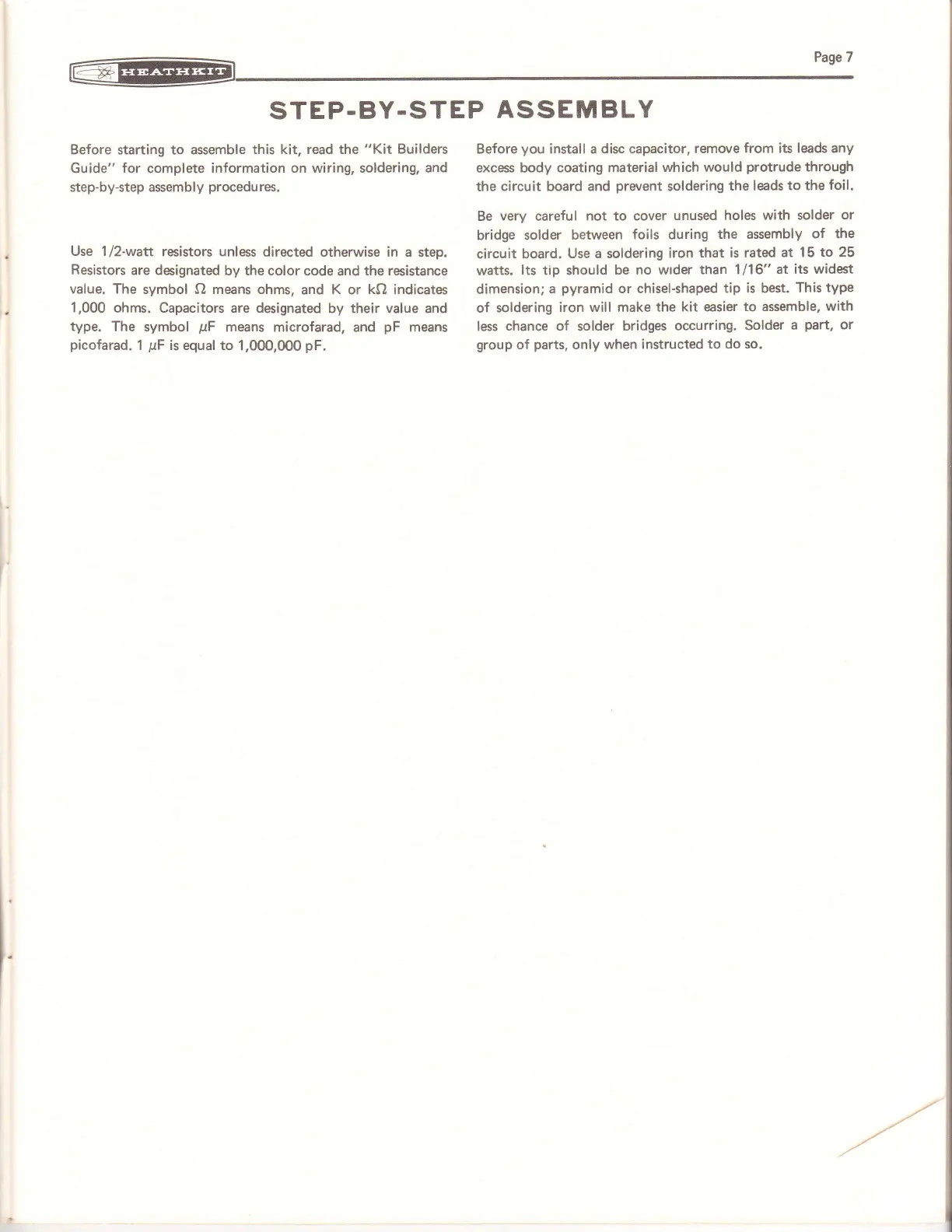

STEP.BY-STEP
ASSEMBLY
Before starting to assemble
this kit, read the
"Kit
Builders
Guide"
for
complete information
on wiring, soldering,
and
step-by-step assembly
procedu
res.
Use 1/2-watt
resistors unless
directed otherwise in a
step.
Resistors
are designated
by the color
code and
the resistance
value. The
symbol fl means ohms,
and K or kQ indicates
1,000
ohms. Capacitors are designated
by their value and
type.
The
symbol
pF
means microfarad, and
pF
means
picofarad.
1
pF
is
equal to
1,000,0O0
pF.
Before
you
install a disc capacitor,
remove
from its leads any
excess body
coating material
which would
protrude
through
the
circuit
board
and
prevent
soldering
the leads
to the
foil.
Be
very
careful
not to cover unused
holes
with solder
or
bridge solder
between
foils during
the assembly
of the
circuit board.
Use a soldering
iron
that is rated
at 15 to 25
watts.
lts
tip should
be no wrder
tnan 1/1 6"
at its widest
dimension;
a
pyramid
or chisel-shaped
tip is best.
This
type
of
soldering iron
will make
the kit easier
to assemble,
with
less
chance of
solder
bridges occurring.
Solder
a
part,
or
group
of
parts,
only when
instructed
to do so.
