Heathkit SW-717 Assembly

tunr.,
@
SHETT
METAL
SCREW
GI
PTASTIC
FOOT
r
,@@
lt."* r*tr I
/,
/
7
#6
x318"

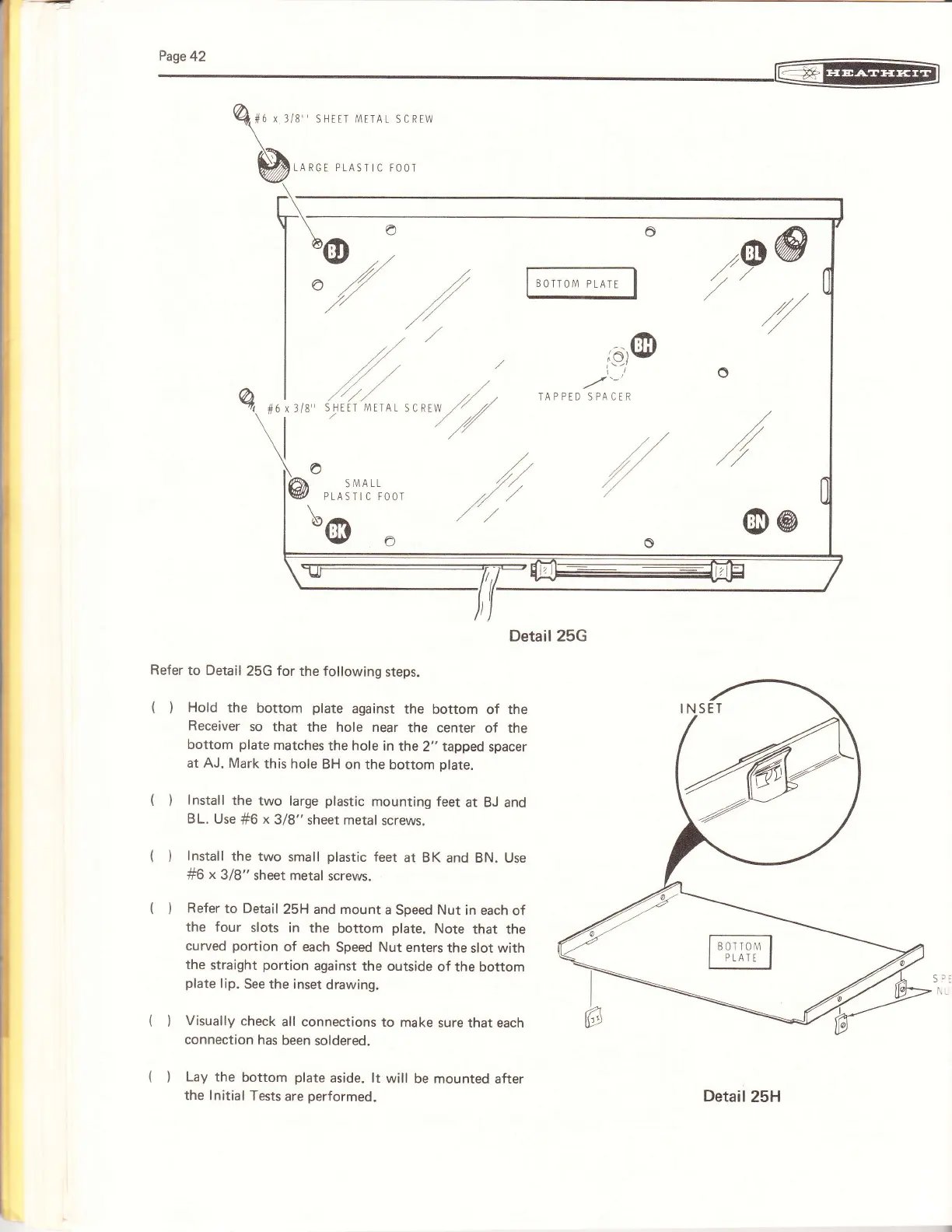

Refer
to Detail
25G
for
the following
steps.
(
)
Hold
the
bottom
plate
against the
bottom
of the
Receiver
so
that
the hole near
the center
of the
bottom
plate
matches
the hole in
the
2" tapped
spacer
at AJ. Mark
this hole
BH
on the
bottom
plate.
(
)
lnstall
the two
large
plastic
mounting
feet
at BJ
and
BL.
Use
#6
x
3l8"
sheet metal
screws.
q,
SMALL
PLASIIC
FOOT
//
\@e
@w
()
()
()
()
Install
the two
small
plastic
feet
at BK
and BN.
Use
#6
x
318"
sheet metal
screws.
Refer
to Detail
25H and mount
a
Speed Nut
in each
of
the four
slots
in the
bottom
plate.
Note
that the
curved
portion
of each
Speed Nut enters
the
slot with
the
straight
portion
against
the outside
of the bottom
plate
lip.
See the
inset
drawing.
Visually
check
all connections
to make
sure that each
connection
has
been
soldered.
Lay
the
bottom
plate
aside. lt
will be
mounted after
the Initial
Tests
are
performed.
Detail 25G
Detail
25H
