Ash Auger Tube Cover Plate
Removal of Ash Auger Tube
Cover Plate
58
Ash Auger Tube
Principles

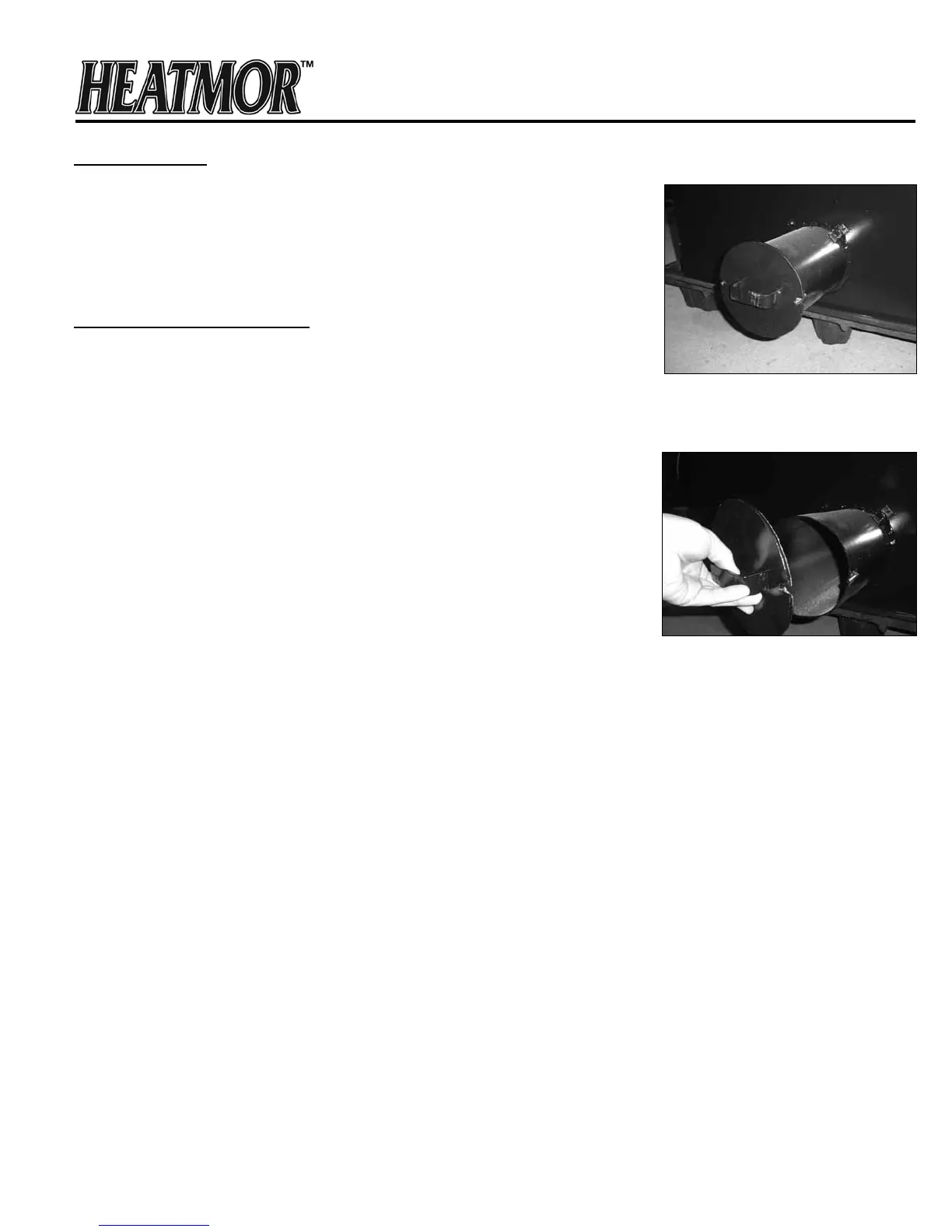

The ash auger tube is a six inch diameter tube that extends from the
rear of the ash pan, to approximately four inches past the cladding of the
HEATMOR™. This extension allows placing a container under the tube to
catch the ashes.
Ash Auger Tube Cover Plate
Principles
The auger tube cover plate is a round plate that is secured onto the end of
the ash auger tube, creating an airtight seal.
Operation
1) When removing ashes, always turn off combustion air
blowers.
2) Remove the two thumb nuts.
3) Insert the ash auger and remove the ashes.
4) Replace the ash auger tube cover plate and securely tighten the
two thumb nuts.
