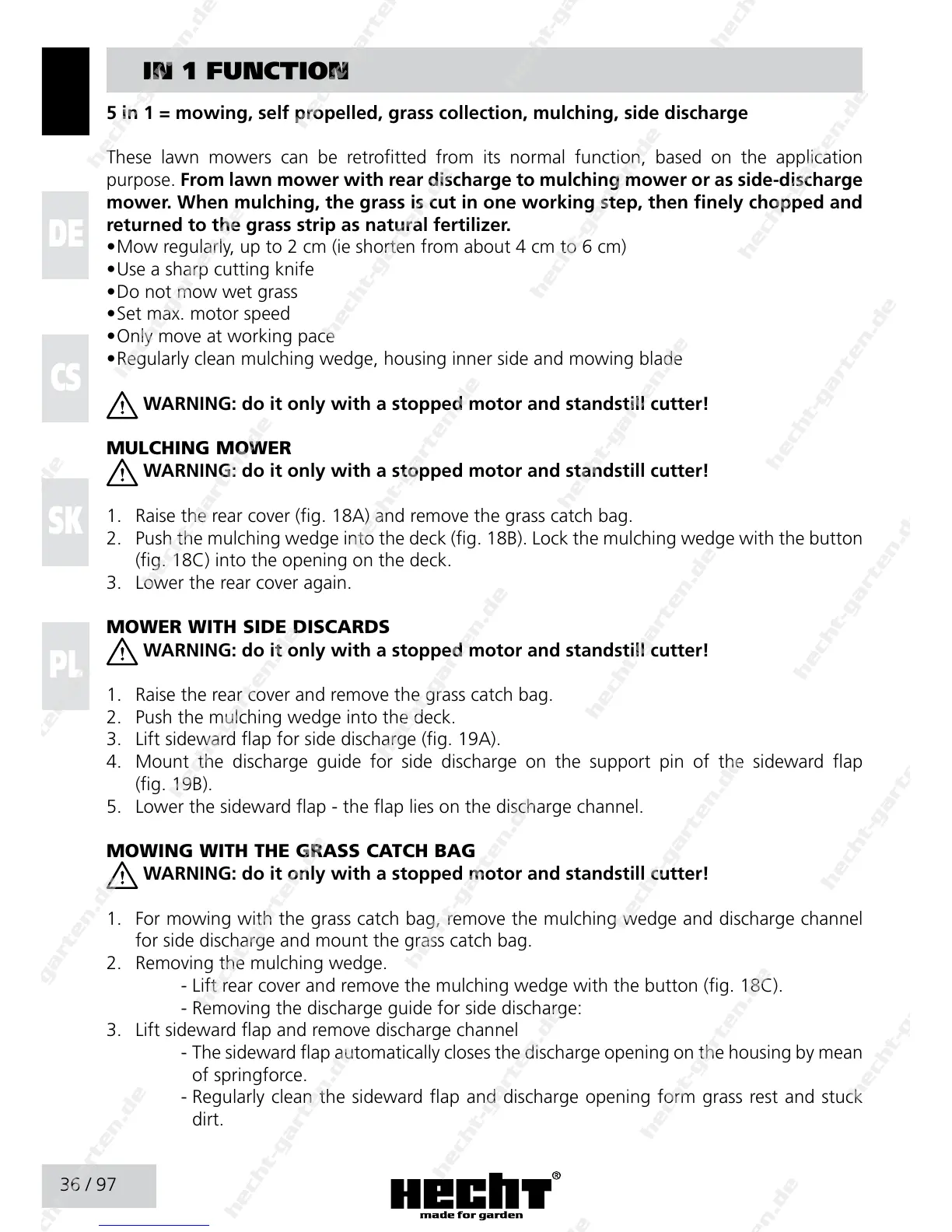

5 IN 1 FUNCTION
5 in 1 = mowing, self propelled, grass collection, mulching, side discharge
These lawn mowers can be retrofitted from its normal function, based on the application
purpose. From lawn mower with rear discharge to mulching mower or as side-discharge
mower. When mulching, the grass is cut in one working step, then finely chopped and
returned to the grass strip as natural fertilizer.
• Mow regularly, up to 2 cm (ie shorten from about 4 cm to 6 cm)
• Use a sharp cutting knife
• Do not mow wet grass
• Set max. motor speed
• Only move at working pace
• Regularly clean mulching wedge, housing inner side and mowing blade
WARNING: do it only with a stopped motor and standstill cutter!
MULCHING MOWER
WARNING: do it only with a stopped motor and standstill cutter!
1. Raise the rear cover (fig. 18A) and remove the grass catch bag.
2. Push the mulching wedge into the deck (fig. 18B). Lock the mulching wedge with the button
(fig. 18C) into the opening on the deck.
3. Lower the rear cover again.
MOWER WITH SIDE DISCARDS
WARNING: do it only with a stopped motor and standstill cutter!
1. Raise the rear cover and remove the grass catch bag.
2. Push the mulching wedge into the deck.
3. Lift sideward flap for side discharge (fig. 19A).
4. Mount the discharge guide for side discharge on the support pin of the sideward flap
(fig. 19B).
5. Lower the sideward flap - the flap lies on the discharge channel.
MOWING WITH THE GRASS CATCH BAG
WARNING: do it only with a stopped motor and standstill cutter!
1. For mowing with the grass catch bag, remove the mulching wedge and discharge channel
for side discharge and mount the grass catch bag.
2. Removing the mulching wedge.
- Lift rear cover and remove the mulching wedge with the button (fig. 18C).
- Removing the discharge guide for side discharge:
3. Lift sideward flap and remove discharge channel
- The sideward flap automatically closes the discharge opening on the housing by mean
of springforce.
- Regularly clean the sideward flap and discharge opening form grass rest and stuck
dirt.
