Creating a new cutting data table.
ú
Select the Programming and Editing mode of operation.
ú
To select the file manager, press the Taste PGM MGT key.
ú Select the directory where the cutting data table is to be stored.
ú
Enter any file name with file name extension .CDT, and confirm
with ENT.
ú

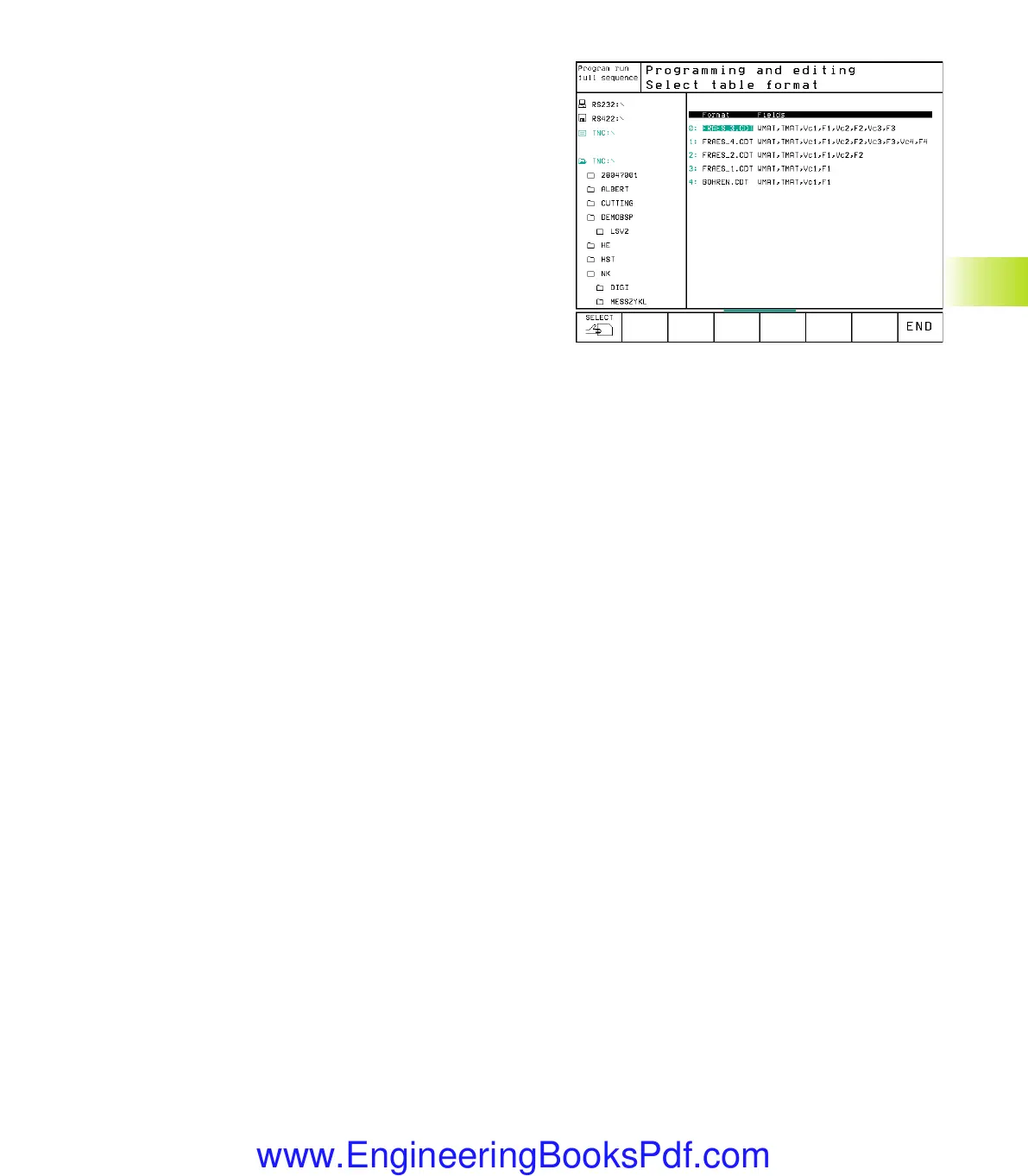

On the right half of the screen, the TNC displays various table
formats (machine-dependent, see example in figure at right).
These tables differ from each other in the number of cutting
speed/feed rate combinations they allow. Use the arrow keys to
move the highlight onto the table format you wish to select and
confirm with ENT. The TNC generates a new, empty cutting data
table.
Data required for the tool table
■
Tool radius – under R (DR)
■ Number of teeth (only with tools for milling) – under CUT.
■
Tool type – under TYPE
The tool type influences the calculation of the feed rate:
Tools for milling: F = S • f
Z
• z
All other tools: F = S • f
U
S = spindle speed
f
Z
= feed rate per tooth
f
U
= feed rate per revolution
z = no. of teeth
■
Tool cutting material – under TMAT
■
Name of the cutting data table for which this tool will be used -
under CDT
In the tool table, select the tool type, tool cutting material and the
name of the cutting data table via soft key (see „5.2 Tool Data“).
5.5 Working with Cutting Data Tables
