HEIDENHAIN TNC 426 B

HEIDENHAIN TNC 426 B, TNC 430 333
13.2 Pin Layout and Connecting Cable for the Data Interfaces
13.2 Pin Layout and Connecting Cable
for the Data Interfaces

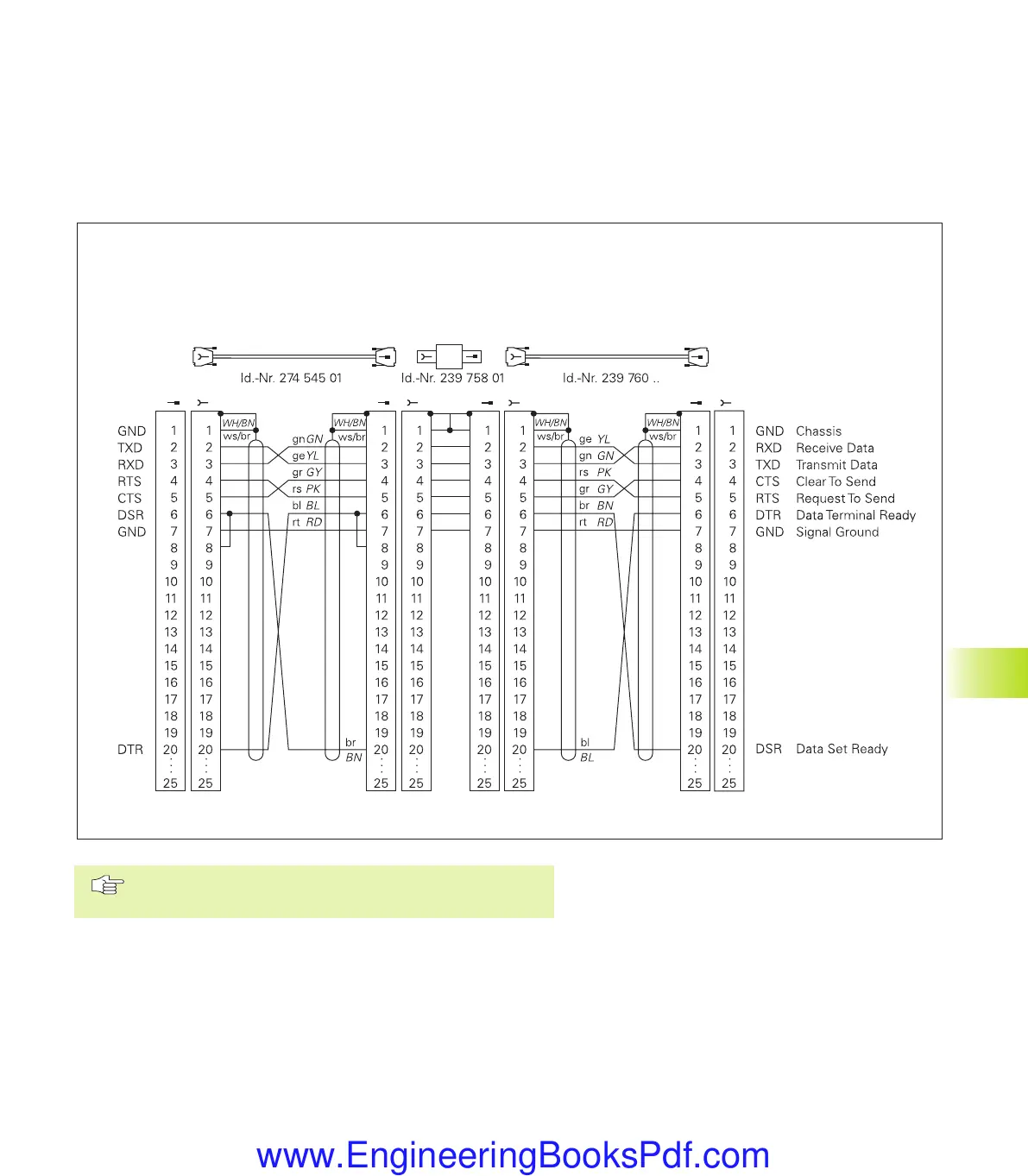

RS-232-C/V.24 Interface
HEIDENHAIN devices
The connector pin layout on the adapter block differs
from that on the TNC logic unit (X21).
HEIDENHAIN devices
External
device
e.g. FE
HEIDENHAIN
standard cable
3 m
RS-422 Adapter
block
HEIDENHAIN
connecting cable
max. 17 m
X21
TNC
