13 Tables and Overviews
334
Non-HEIDENHAIN devices
The connector pin layout of a non-HEIDENHAIN device may differ
considerably from that on a HEIDENHAIN device.

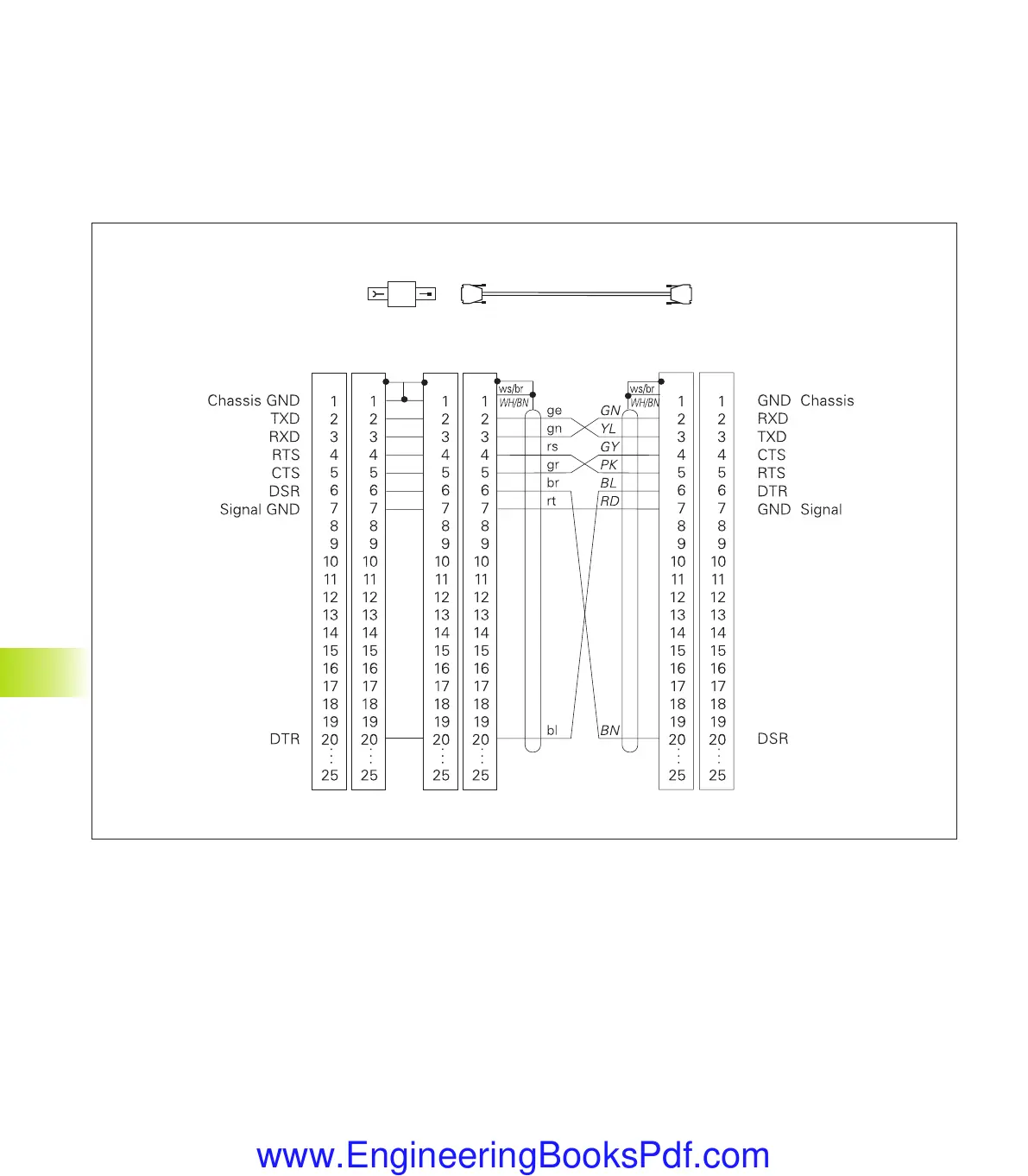

This often depends on the unit and type of data transfer. The figure
below shows the connector pin layout on the adapter block.
13.2 Pin Layout and Connecting Cable for the Data Interfaces
RS-422 Adapter
block
X21
TNC
Pkap13.pm6 30.06.2006, 07:04334
