129HEIDENHAIN TNC 426 B, TNC 430
6.6 Path Contours — FK Free Contour Programming

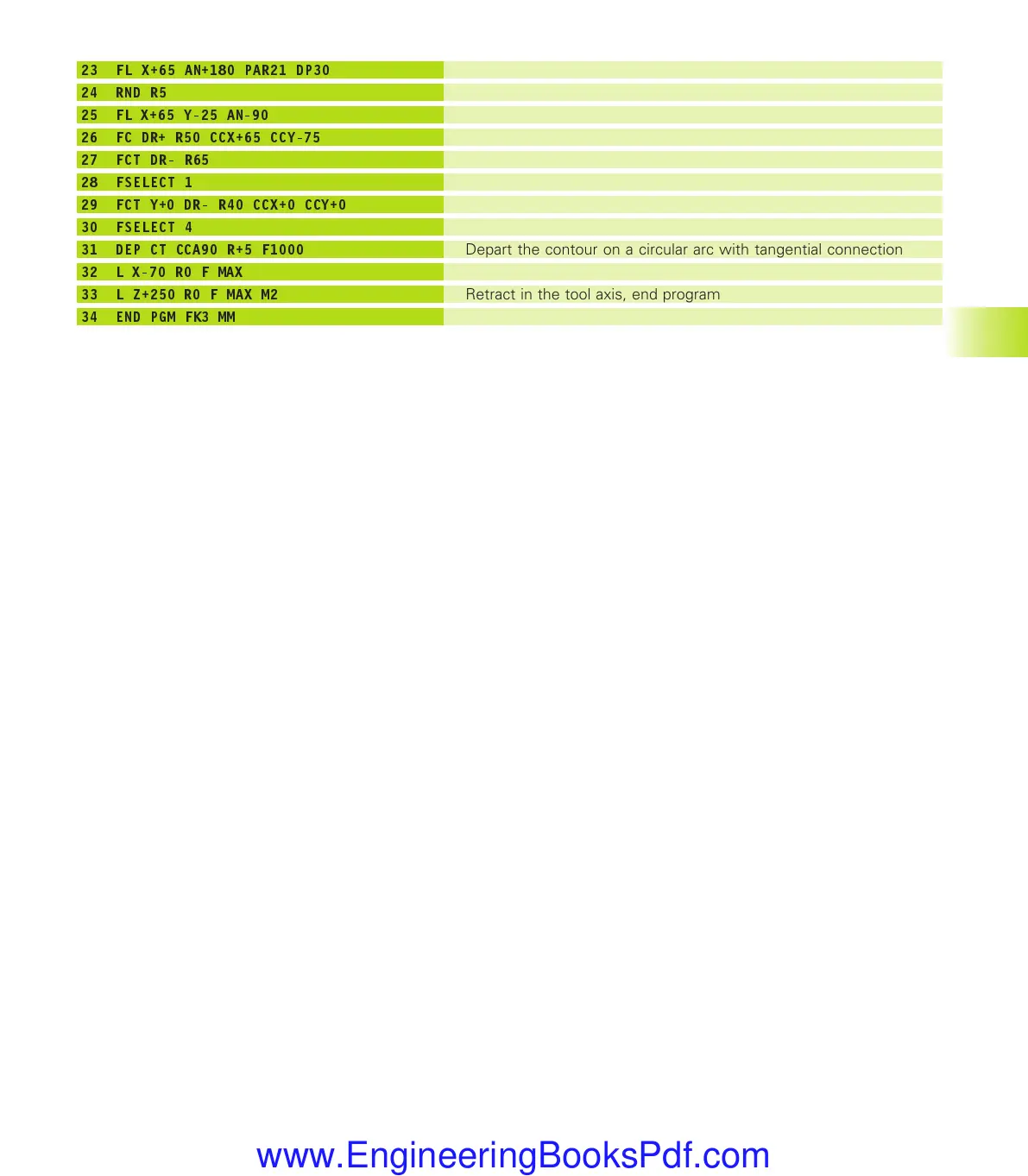

23 FL X+65 AN+180 PAR21 DP30
24 RND R5
25 FL X+65 Y-25 AN-90
26 FC DR+ R50 CCX+65 CCY-75
27 FCT DR- R65
28 FSELECT 1
29 FCT Y+0 DR- R40 CCX+0 CCY+0
30 FSELECT 4
31 DEP CT CCA90 R+5 F1000
32 L X-70 R0 F MAX
33 L Z+250 R0 F MAX M2
34 END PGM FK3 MM
Depart the contour on a circular arc with tangential connection
Retract in the tool axis, end program
