Before programming, note the following:
The algebraic sign for the depth parameter determines
the working direction.
If you want to clear and finish the stud with the same
tool, use a center-cut end mill (ISO 1641) and enter a low
feed rate for plunging.
ú
Set-up clearance Q200 (incremental value): Distance
between tool tip and workpiece surface.
ú
Depth Q201 (incremental value): Distance between
workpiece surface and bottom of stud
ú
Feed rate for plunging Q206: Traversing speed of the
tool in mm/min when moving to depth. If you are
plunge-cutting into the material, enter a low value; if
you have already cleared the stud, enter a higher feed
rate.
ú
Plunging depth Q202 (incremental value):
Infeed per cut; enter a value greater than 0.
ú Feed rate for milling Q207: Traversing speed of the
tool in mm/min while milling.
ú
Workpiece surface coordinate Q203 (absolute value):
Coordinate of the workpiece surface
ú
2nd set-up clearance Q204 (incremental value):
Coordinate in the tool axis at which no collision
between tool and workpiece (clamping devices) can
occur.
ú
Center in 1st axis Q216 (absolute value): Center of the
stud in the main axis of the working plane
ú
Center in 2nd axis Q217 (absolute value): Center of the
stud in the secondary axis of the working plane
ú Workpiece blank diameter Q222: Diameter of the
premachined stud. Enter the workpiece blank
diameter to be greater than the diameter of the
finished part.
ú
Diameter of finished part Q223: Diameter of the
finished stud. Enter the diameter of the finished part
to be less than the workpiece blank diameter.

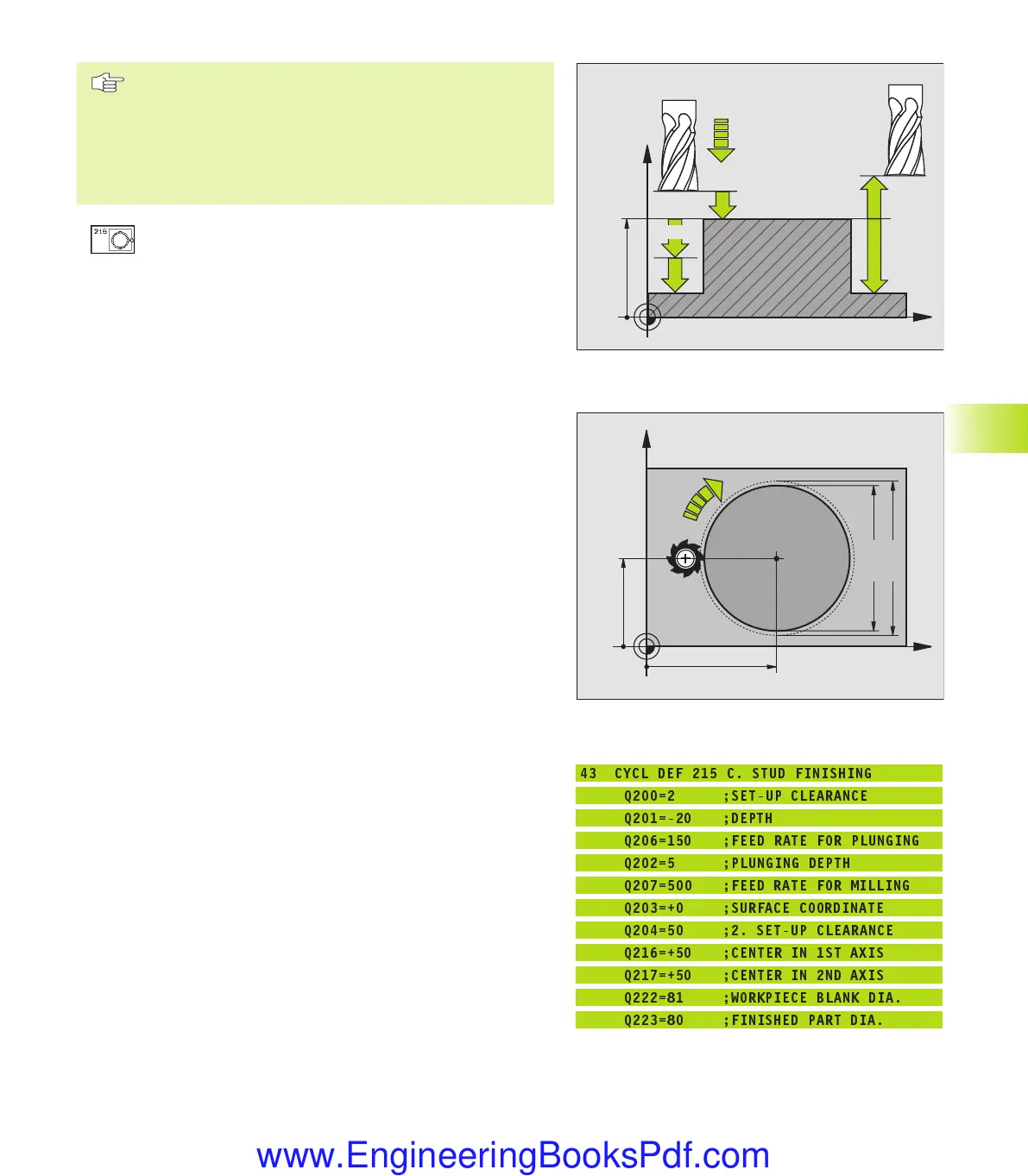

8.3 Cycle for Milling Pockets, Studs and Slots
X
Z
Q200
Q201
Q206
Q203
Q204
Q202
X
Y
Q223
Q217
Q216
Q207
Q222
Example NC blocks:
43 CYCL DEF 215 C. STUD FINISHING
Q200=2 ;SET-UP CLEARANCE
Q201=-20 ;DEPTH
Q206=150 ;FEED RATE FOR PLUNGING
Q202=5 ;PLUNGING DEPTH
Q207=500 ;FEED RATE FOR MILLING
Q203=+0 ;SURFACE COORDINATE
Q204=50 ;2. SET-UP CLEARANCE
Q216=+50 ;CENTER IN 1ST AXIS
Q217=+50 ;CENTER IN 2ND AXIS
Q222=81 ;WORKPIECE BLANK DIA.
Q223=80 ;FINISHED PART DIA.
