8 Programming: Cycles
192
The machining data (such as milling depth, finishing allowance and
setup clearance) are entered as CONTOUR DATA in Cycle 20.
Overview of SL cycles
Cycle Soft key
14 CONTOUR GEOMETRY (essential)
20 CONTOUR DATA (essential)
21 PILOT DRILLING (optional)
22 ROUGH-OUT (essential)
23 FLOOR FINISHING (optional)
24 SIDE FINISHING (optional)
Enhanced cycles:
Cycle Soft key
25 CONTOUR TRAIN
27 CYLINDER SURFACE

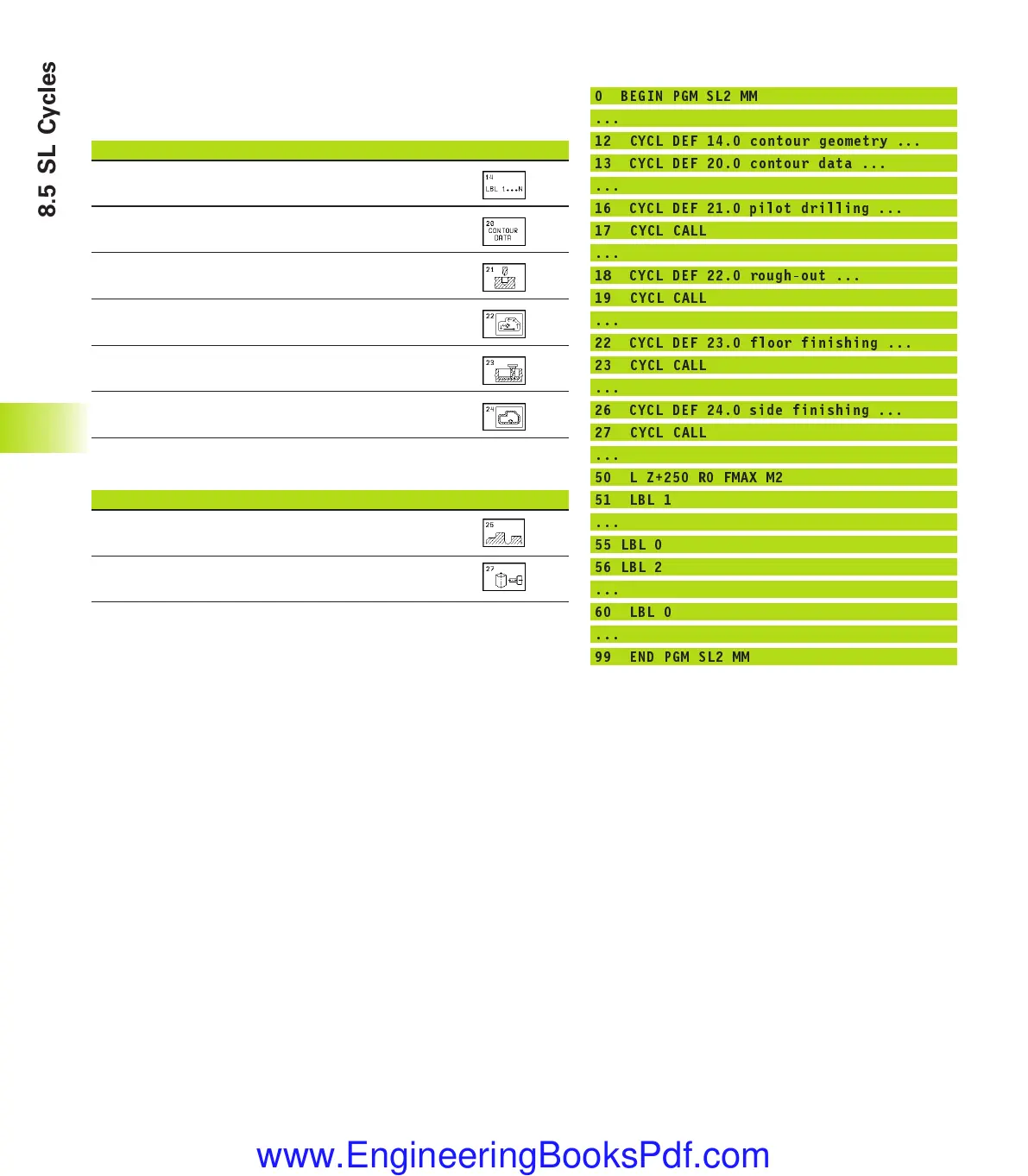

Program structure: Working with SL cycles
0 BEGIN PGM SL2 MM
...
12 CYCL DEF 14.0 contour geometry ...
13 CYCL DEF 20.0 contour data ...
...
16 CYCL DEF 21.0 pilot drilling ...
17 CYCL CALL
...
18 CYCL DEF 22.0 rough-out ...
19 CYCL CALL
...
22 CYCL DEF 23.0 floor finishing ...
23 CYCL CALL
...
26 CYCL DEF 24.0 side finishing ...
27 CYCL CALL
...
50 L Z+250 R0 FMAX M2
51 LBL 1
...
55 LBL 0
56 LBL 2
...
60 LBL 0
...
99 END PGM SL2 MM
8.5 SL Cycles
