HEIDENHAIN TNC 426 B

205
HEIDENHAIN TNC 426 B, TNC 430

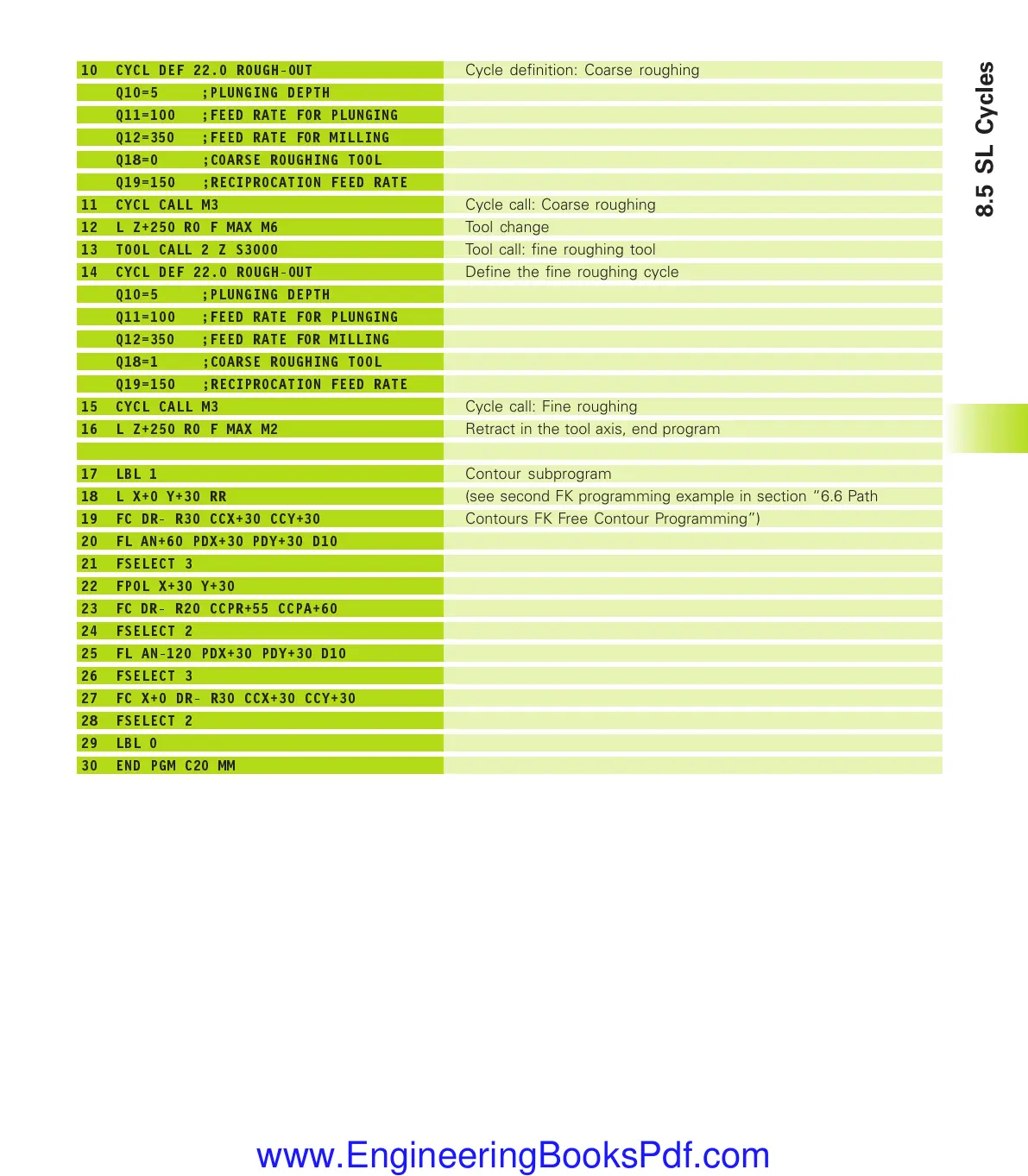

10 CYCL DEF 22.0 ROUGH-OUT
Q10=5 ;PLUNGING DEPTH
Q11=100 ;FEED RATE FOR PLUNGING
Q12=350 ;FEED RATE FOR MILLING
Q18=0 ;COARSE ROUGHING TOOL
Q19=150 ;RECIPROCATION FEED RATE
11 CYCL CALL M3
12 L Z+250 R0 F MAX M6
13 TOOL CALL 2 Z S3000
14 CYCL DEF 22.0 ROUGH-OUT
Q10=5 ;PLUNGING DEPTH
Q11=100 ;FEED RATE FOR PLUNGING
Q12=350 ;FEED RATE FOR MILLING
Q18=1 ;COARSE ROUGHING TOOL
Q19=150 ;RECIPROCATION FEED RATE
15 CYCL CALL M3
16 L Z+250 R0 F MAX M2
17 LBL 1
18 L X+0 Y+30 RR
19 FC DR- R30 CCX+30 CCY+30
20 FL AN+60 PDX+30 PDY+30 D10
21 FSELECT 3
22 FPOL X+30 Y+30
23 FC DR- R20 CCPR+55 CCPA+60
24 FSELECT 2
25 FL AN-120 PDX+30 PDY+30 D10
26 FSELECT 3
27 FC X+0 DR- R30 CCX+30 CCY+30
28 FSELECT 2
29 LBL 0
30 END PGM C20 MM
Cycle definition: Coarse roughing
Cycle call: Coarse roughing
Tool change
Tool call: fine roughing tool
Define the fine roughing cycle
Cycle call: Fine roughing
Retract in the tool axis, end program
Contour subprogram
(see second FK programming example in section “6.6 Path
Contours FK Free Contour Programming”)
8.5 SL Cycles
