10 Programming: Q Parameters
272
Programming example
Calculate an angle with arc tangent as opposite side (Q12) and
adjacent side (Q13); then store in Q25.

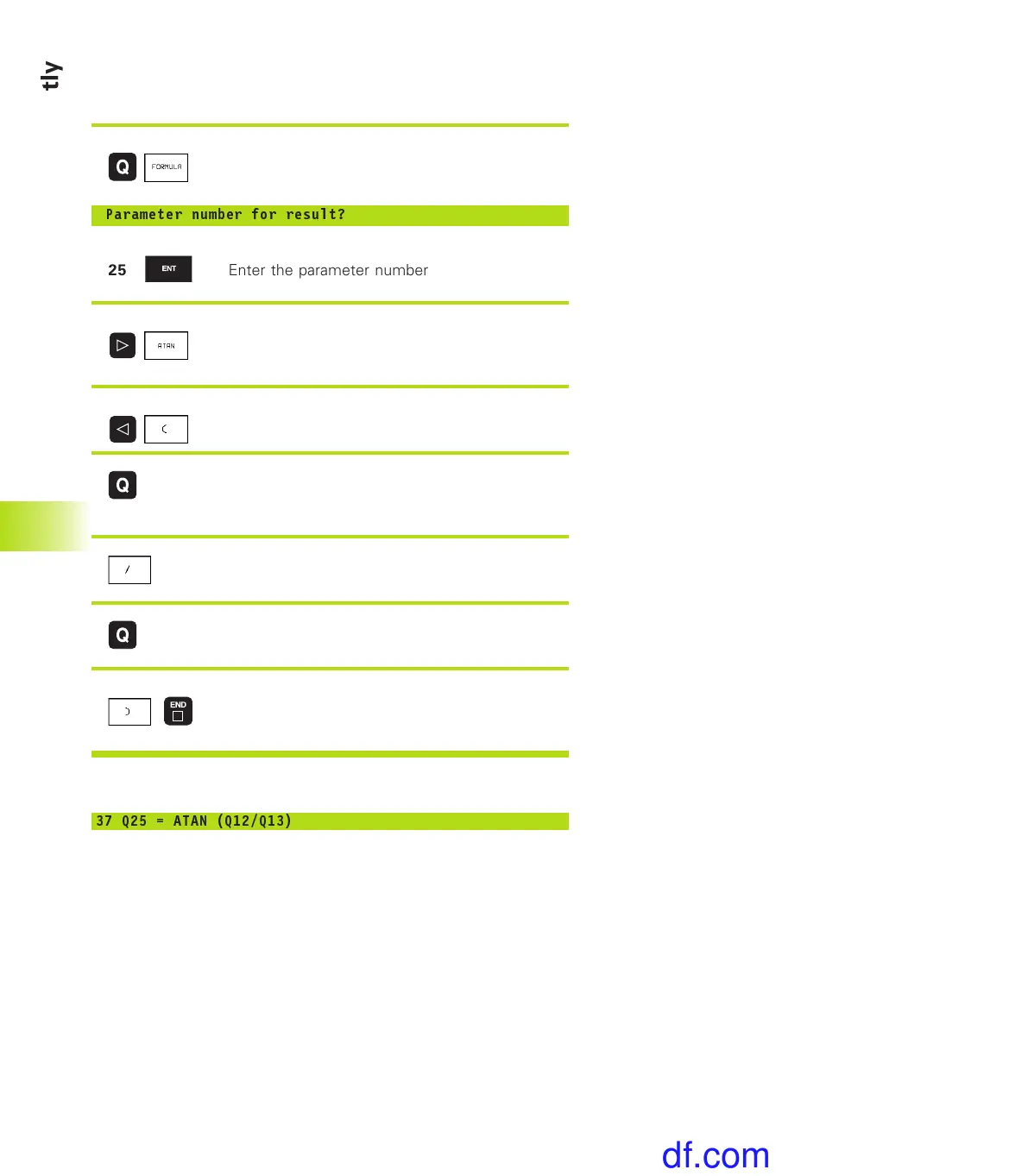

To select the formula entering function, press
the Q key and FORMULA soft key.
Parameter number for result?
25 Enter the parameter number.
Shift the soft-key row and select the
arc tangent function.
Shift the soft-key row and open parentheses.
12 Enter Q parameter number 12.
Select division.
13 Enter Q parameter number 13.
Close parentheses and conclude
formula entry.
Example NC block
37 Q25 = ATAN (Q12/Q13)
10.9 Entering Formulas Directly
