Operation
16

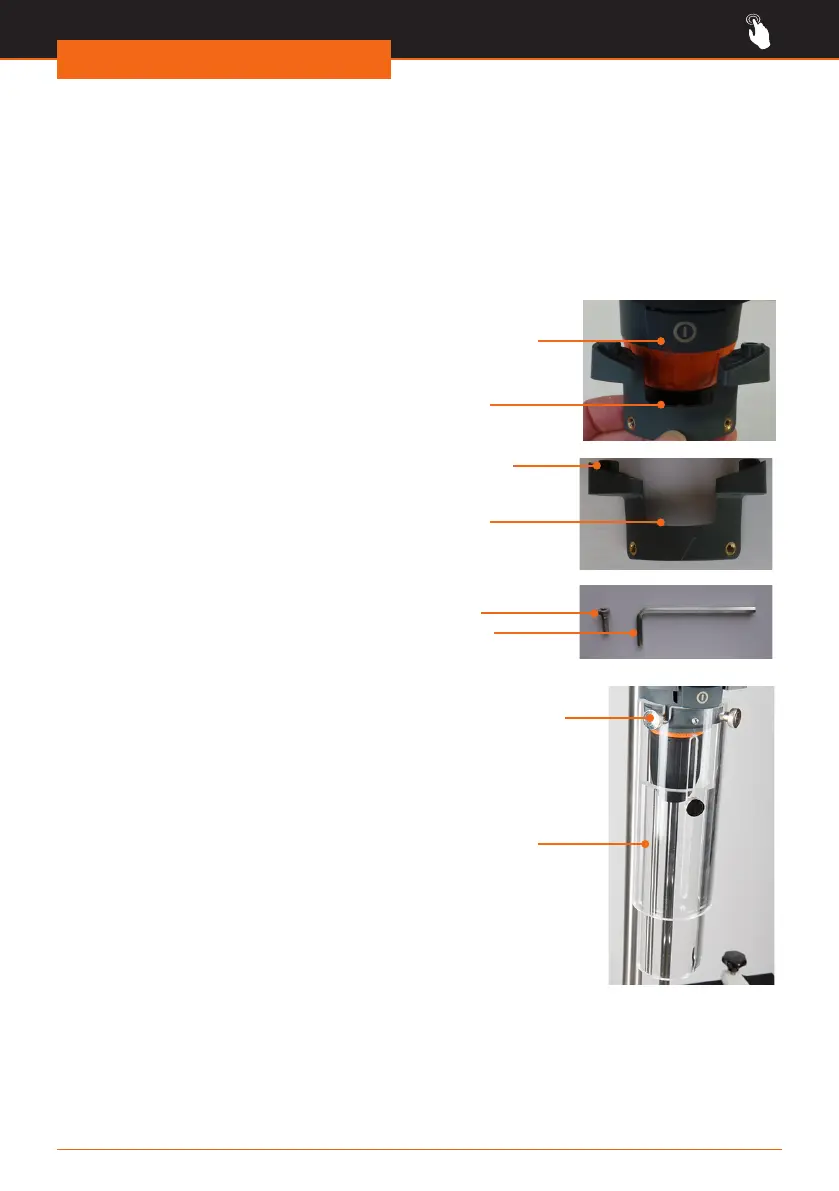

Shaft guard
To prevent injuries caused by rotating parts a shaft guard can be attached.
(optional accessory P/N 509-08000-00)
To mount the shaft guard use a TORX screw driver T20.
Attach shaft guard
➜ Hold the adaptor to the chuck with the
cut-out below the on/off switch.
Cut-out
On/Off switch
✓ The two guide aids ensure correct
tting.
Guide aids
Cut-out
➜ Attach the adaptor with the two
hexagon socket screws and key
supplied to the bottom side of the
housing and tighten them until it
stops.
Hexagon socket-
screw
and key
➜ Attach both knurled screws to the drill
hole on the adaptor.
➜ Push the grooves on the shaft guard
alongside the knurled screws until the
screws reach the end of the groove.
➜ Tighten both knurled screws to hold
the shaft guard rmly in place.
Shaft guard
Knurled screws
Remove shaft guard
➜ Untighten both knurled screws which hold the shaft guard to the adaptor.
➜ Turn the shaft guard slightly left and remove it from the stirrer.
