6 Sensors

Digital Governor Basic System PANDAROS II 15

6.2.5 Dimensions

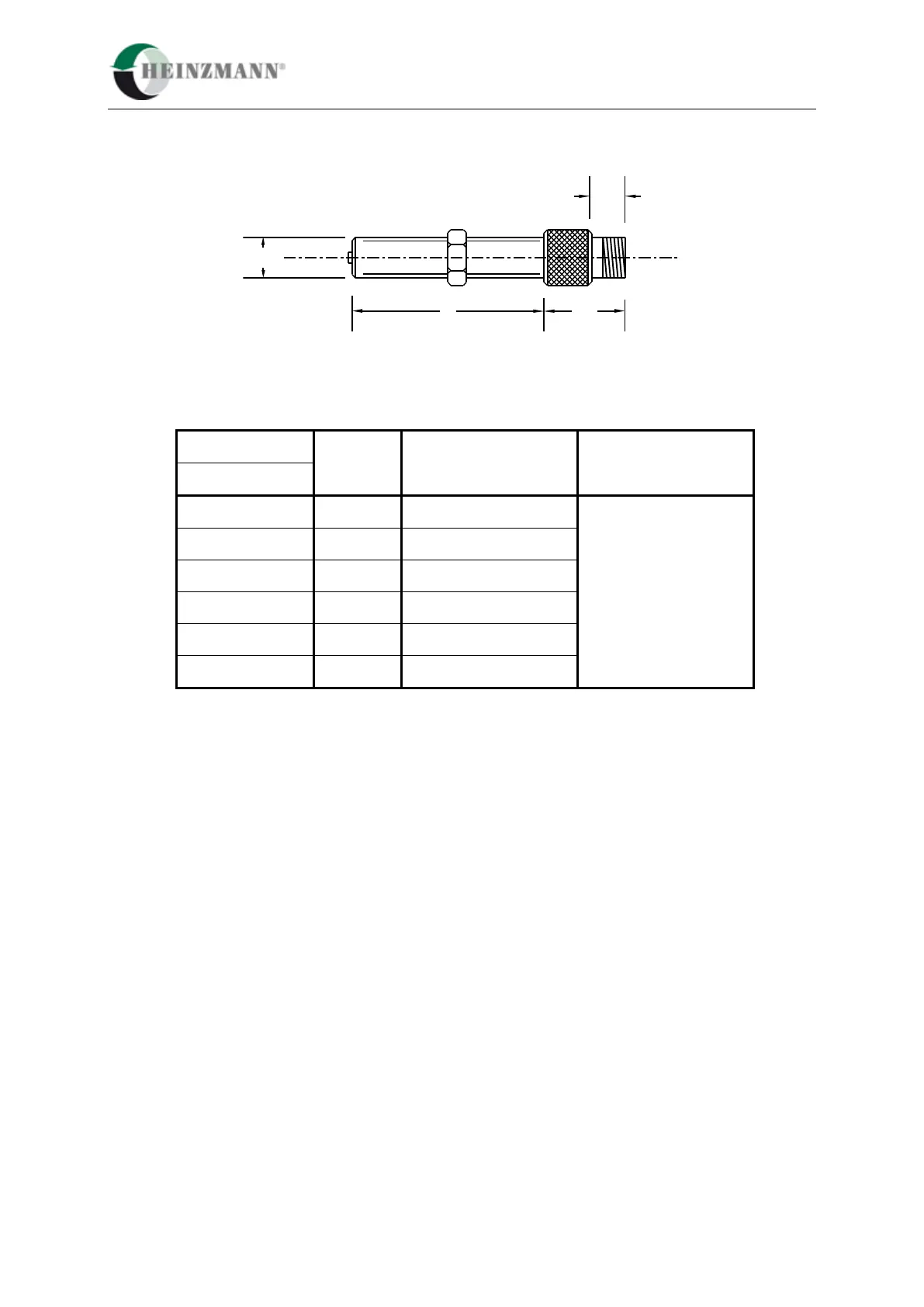

Fig. 3: Dimensions of pick-up

Measures

(mm)

Remarks

Type

01-38

M 16 x 1,5

02-76

M 16 x 1,5

appropriate

03-102

102

M 16 x 1,5

plug

11-38

5/8"-18UNF-2A

SV 6-IA-2K

12-76

5/8"-18UNF-2A

(010-02-170-00)

13-102

102

5/8"-18UNF-2A

Ordering specification, e.g. IA 02-76
