Heinzmann PANDAROS II User Manual

6 Sensors
16 Digital Governor Basic System PANDAROS II
6.3 Coolant temperature sensor TS 01-28-PT1000
(EDV- No.: 600-00-053-00)
Measuring range -50°C … +150°C
Precision 1.5°C
Resistance at 25 °C (R25) 1000 Ohm 0.5 %
Maximum operating voltage 5 V
Maximum operating current 3 mA
Recommended operating current approx. 1 mA
Time constant in fluids approx. 13 seconds
Admissible temp. range of connector -40°C … +105°C
Protection grade IP 65
Vibration < 20 g, 10 … 300 Hz
Shock < 50 g, 11 ms half-sine wave
Tightening torque 50 Nm 15 %
Appropriate connector SV 6-IA-2K (EDV- No.: 010-02-170-00)

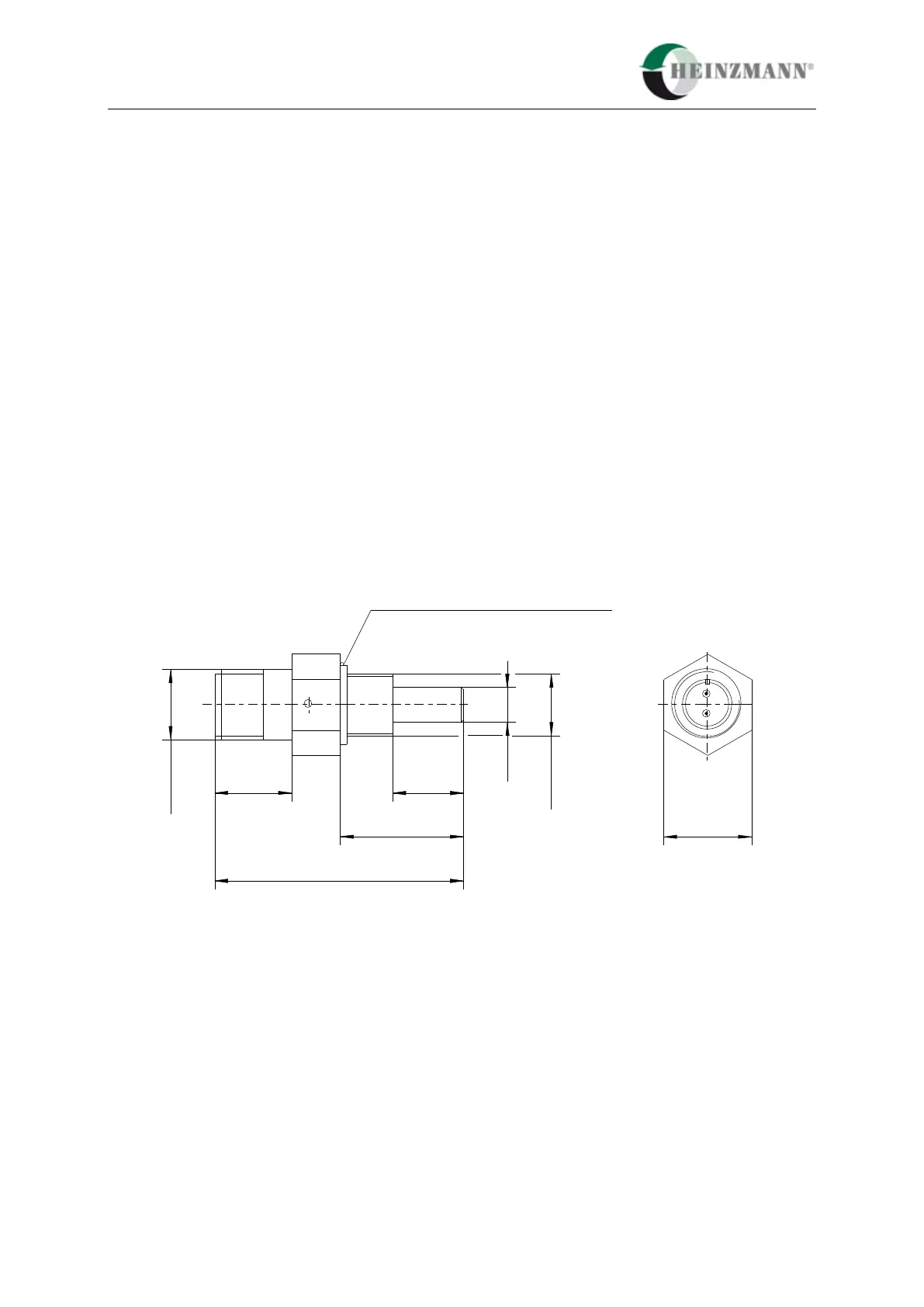

Fig. 4: Temperature sensor TS 01-28-PT1000
B
A
seal ring DIN 7603-14x18 (Cu)
pin configuration:
B = -
19
SW
5/8"-24
M14x1,5
8
h7
16
28
17,5
56,5
A = +
