7 Setpoint adjusters
20 Digital Governor Basic System PANDAROS II
7 Setpoint adjusters
With regard to the variety of applications, various setpoint adjusters are available for the
HEINZMANN digital speed governors of series PANDAROS. The customer specifies the
setpoint selection type by means of parameter settings. As a result, it is not necessary for
HEINZMANN to adapt the hardware prior to delivering the controller.

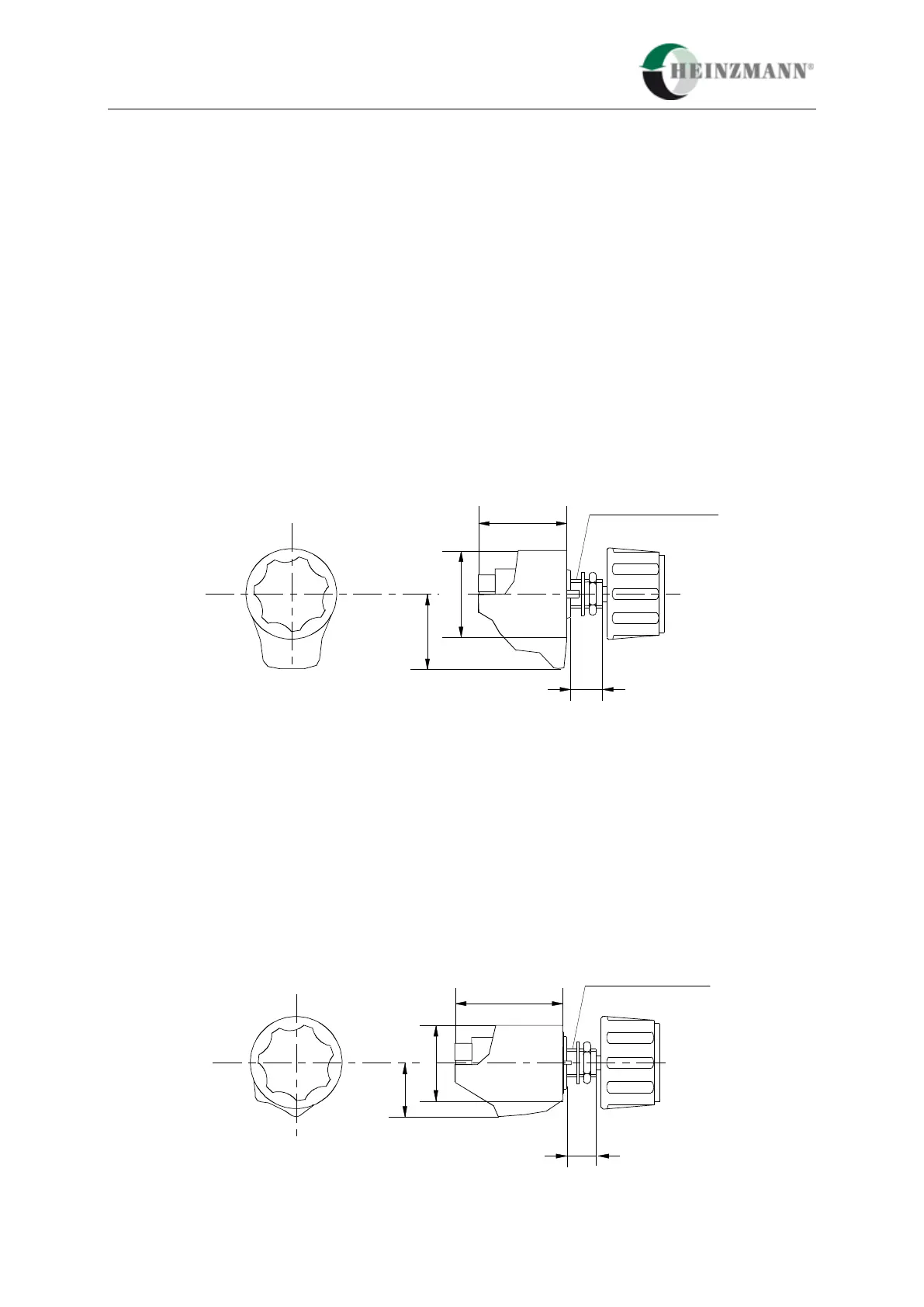

7.1 Setpoint potentiometer SW 01-1-b (1 turn)
(EDV- No.: 600-00-041-01)
Displacement angle approx. 312°
Resistance 5 kOhm
Temperature range -55°C … +120°C
Protection grade IP 00
Fig. 8: Potentiometer SW 01-1-b
7.2 Setpoint potentiometer SW 02-10-b (10 turn)
(EDV- No.: 600-00-042-01)
Displacement angle 10 turns
Resistance 5 kOhm
Temperature range -55°C … +105°C
Protection grade IP 00
Fig. 9: Potentiometer SW 02-10-b
9,5
3/8" - 32 NEF - 2A
Ø 27
23
26
8,8
3/8" - 32 NEF - 2A
Ø 23
17
32
