6 Sensors
Digital Governor Basic System PANDAROS II 17
6.4 Pressure sensors
6.4.1 Oil pressure sensor
Measuring range 0 … 6 bar or 0 … 10 bar
Over pressure 15 bar resp. 20 bar
Supply voltage 10 … 34 V DC
Output signal 4 … 20 mA
Storage temperature -25°C … +85°C
Ambient temperature -25°C … +85°C
Oil temperature -25°C … +125°C
Protection grade IP 65
Vibration < 20 g, 10 … 300 Hz
Shock < 50 g, 11 ms half-sine wave
Tightening torque max. 25 Nm
Connection DIN 43650-A, 2-line system

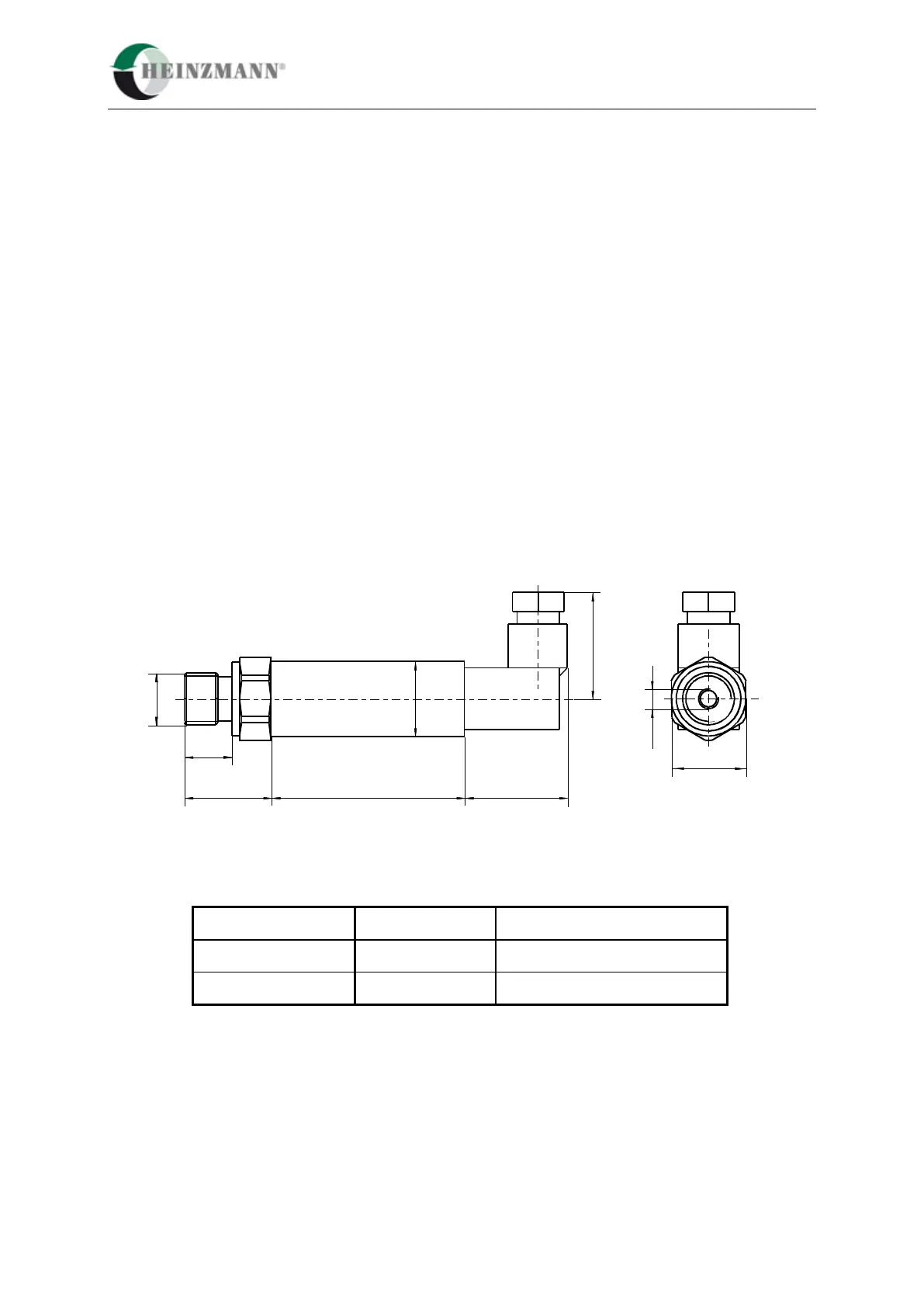

Fig. 5: Oil pressure sensor
Pressure Sensor
EDV- No.
Max. Oper. Pressure (bar)
DSO 01-6
600-00-058-00
6
DSO 01-10
600-00-058-01
10
12
22
48,8 26
Ø 19
27
R1/4"
M5
SW 19
