Heinzmann PANDAROS II User Manual

6 Sensors
18 Digital Governor Basic System PANDAROS II
6.4.2 Boost pressure sensors
The boost pressure sensors are also available in an additional housing with terminal
strip.
Measuring range 0 … 2 bar, 0 … 5 bar or 0 … 10 bar
Over pressure 4 bar resp. 10 bar resp. 16 bar
Supply voltage 12 … 36 V DC
Output signal 4 … 20 mA
Storage temperature -55°C … +100°C
Ambient temperature -40°C … +100°C
Protection grade IP 65
Vibration < 2 g, 5 … 500 Hz
Shock < 50 g, 11 ms half-sine wave
Connection DIN 43650-A or terminal strip, 2-line system
6.4.2.1 Boost pressure sensor with plug

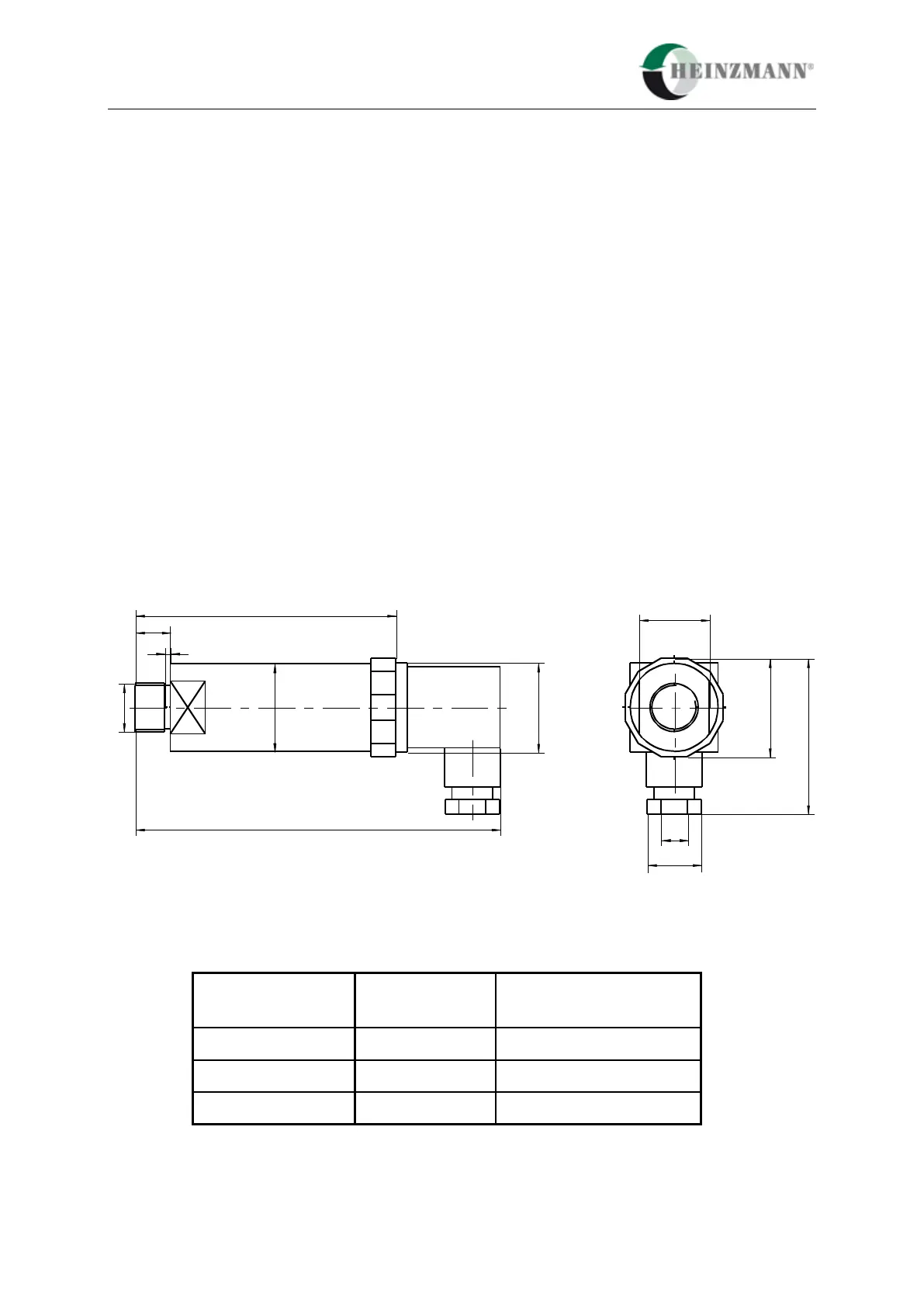

Fig. 6: Boost pressure sensor with plug
Pressure Sensor
EDV- No.
Maximum Operating
Pressure (bar rel.)
DSL 01-2
600-00-057-00
2
DSL 01-5
600-00-057-01
5
DSL 01-10
600-00-057-02
10
92
12
2
R3/8"
Ø 30
128
30,5
Ø 19
PG9
SW 24
33,5
53
