Heinzmann PANDAROS II User Manual

11 Electrical connection
40 Digital Governor Basic System PANDAROS II
11.5 Connection for variation DG 6-03 (extended generator)
As a result of the numerous options for assigning analogue and digital inputs, the following
terminal connection diagram only indicates the types of the potential inputs. The functions
that can be assigned to these inputs are listed below.

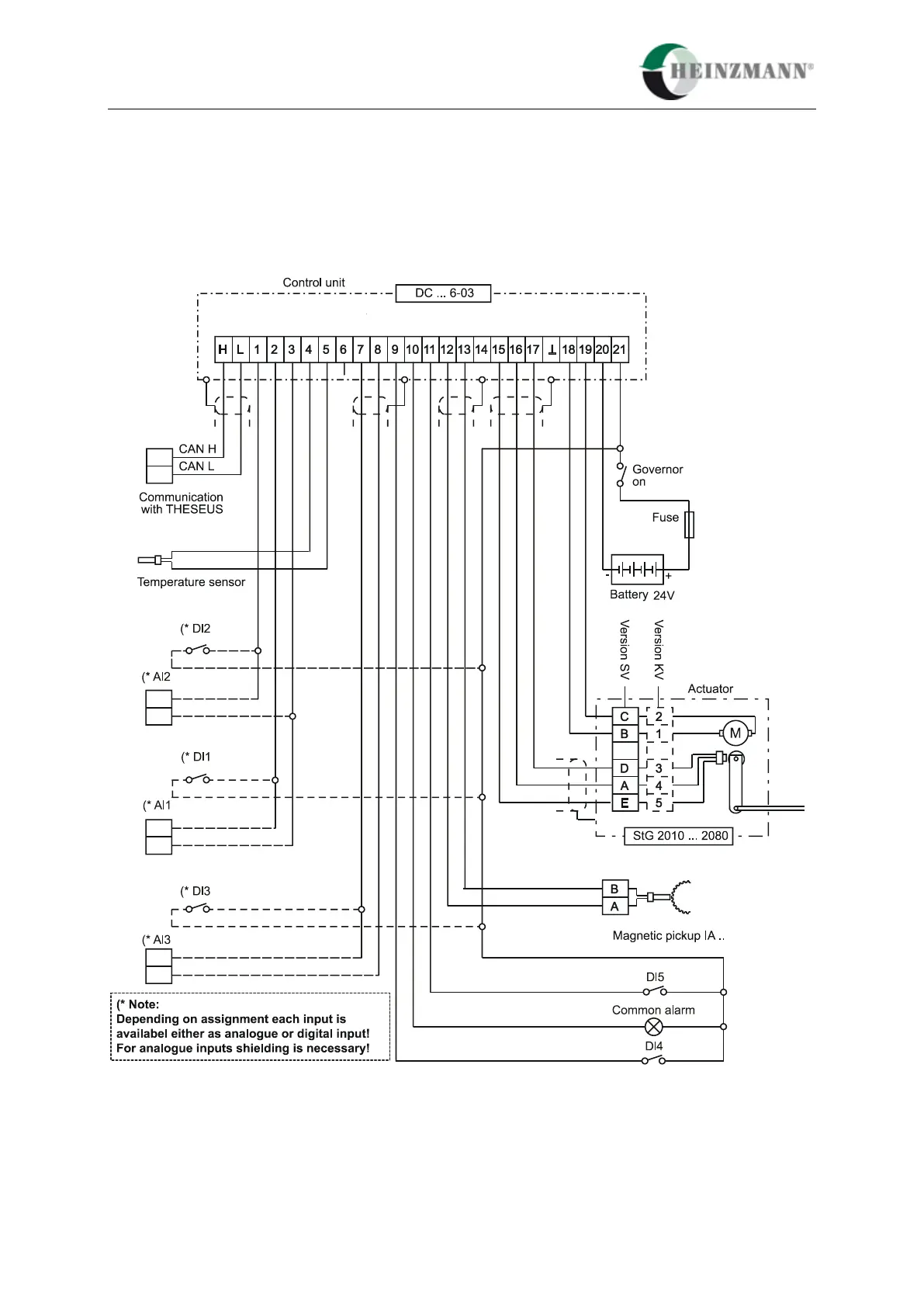

Fig. 19: Connection diagram for variation DG 6-03
