Heinzmann PANDAROS II - Page 39

9 Actuators
Digital Governor Basic System PANDAROS II 31

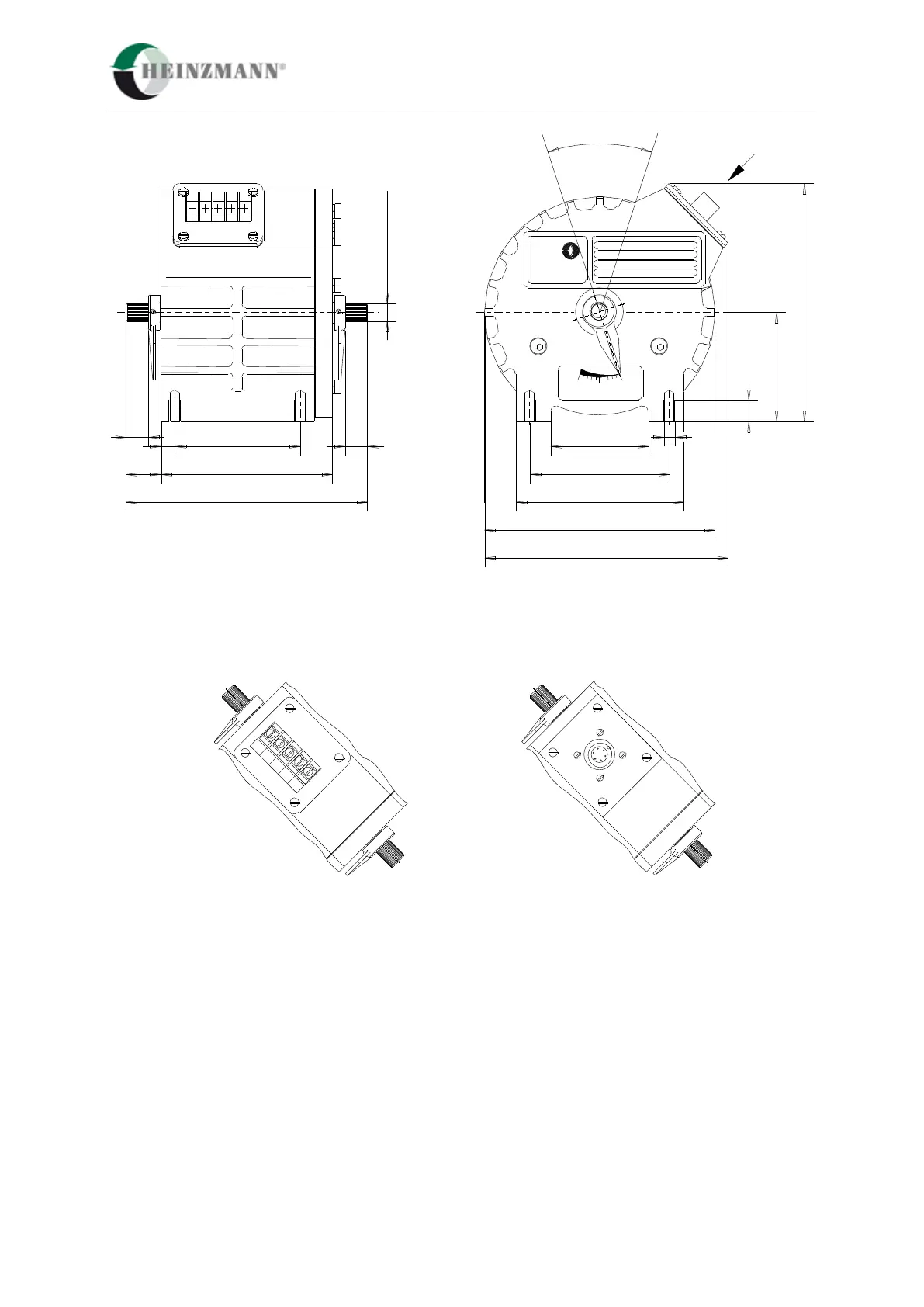

Fig. 14: Actuator StG 2080.xx
0
Füllung Fuel
Combustible
Am Haselbach 1
D-79677 SchÎnau
Germany
Telefon: (07673) 8208-0
Telefax: (07673) 8208-88
HEINZMANN
GmbH + Co.
R
Serial No.
for BasicSystem E
Range Voltage
Patents pending
100
9010
16
25
123
173
16
SAE Serration 1/2" - 36
174
165
120
100
70
M8
15
78
170
36°
1
2
3
4
5
X
view X with terminal strip view X with plug-in connector
