HELI OPSM - Page 17

14
Controller
Function
15
Drive motor
Wearing condition of carbon brush and
communtator
16
Lifting motor
Wearing condition of carbon brush and
communtator
17
Steering motor
Wearing condition of carbon brush and
commentator (except for no steering motor)
18
Fuse
Complete or not
19
Wiring harness and
terminals
Loosened and damaged or not

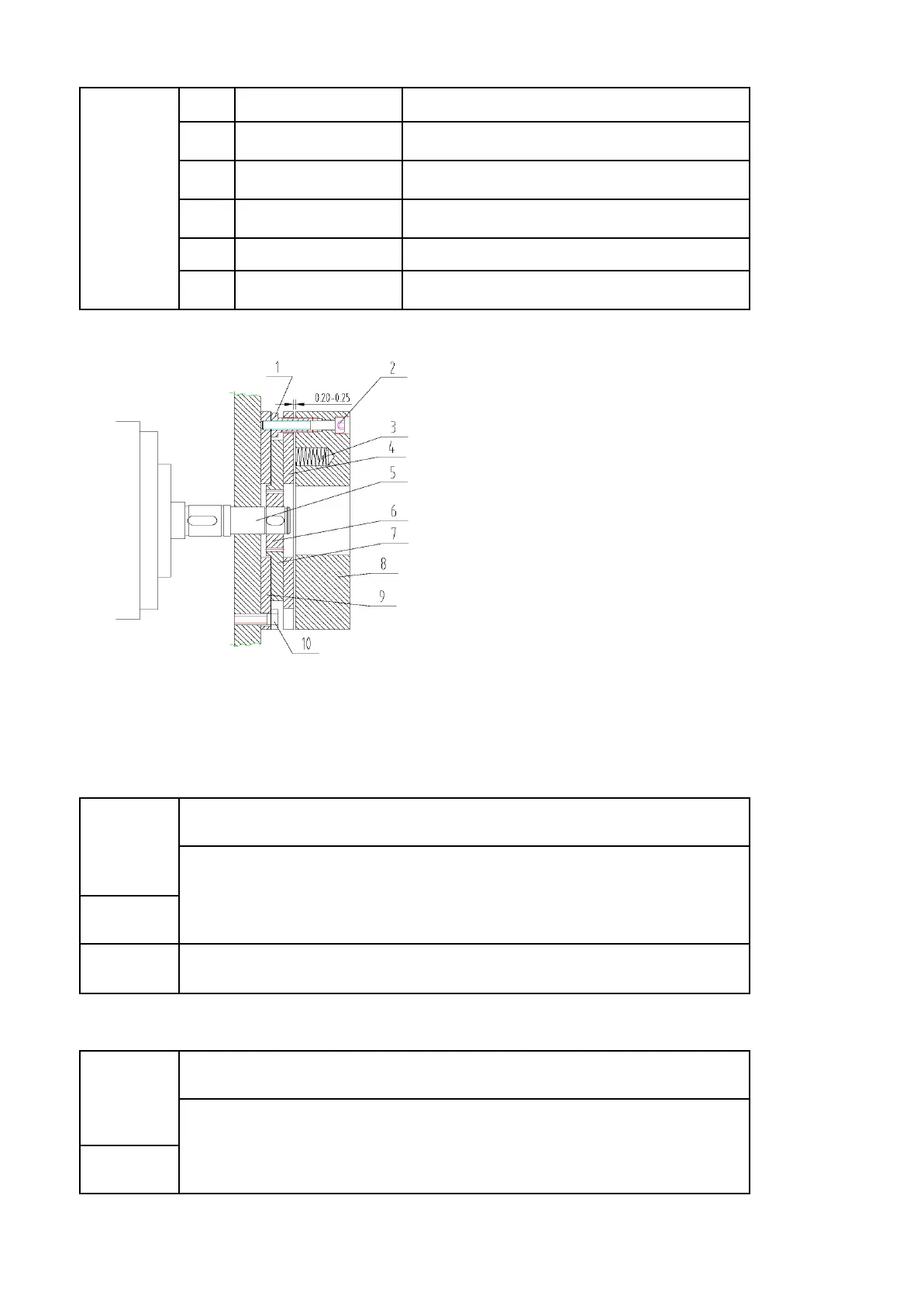

Methods for adjusting brake clearance
1 Hollow screw 2 Connecting screw 3 Spring
4 Armature 5 Motor shaft 6 Spline housing
7 Friction plate 8 Solenoid coil 9 Mounting cover
plate 10 Mounting screw
Structure of brake is shown in the drawing. After the
truck has been used for some time, the braking
performance will decline with the wearing of brake plate,
or the brake plate locks and cannot release the brake,
then the brake clearance needs adjustment. As shown in
the drawing, under the braked condition, first measure
the gap between the brake plate and the magnetic steel
with a feeler gauge. If the gap is greater than 0.5mm, the
clearance needs adjustment. Before adjustment, first
wipe out dirt and dust on the friction plate. When
adjusting, first release the connecting screw, adjust the
length of adjusting screw 1, and then, fasten the
fastening screw. After adjustment, the clearance between
brake plate and magnetic steel should be between 0.2-0.3mm. Pay attention to adjust the three adjusting
screws evenly to make the clearance between brake plate and magnetic steel spread evenly around. After
adjustment, connect the brake with 24V DC power, and crisp sounds of suction shall be heard.
9.7 Maintenance after 600 hours (every 3 months)
For maintenance every 3 months, repeat the monthly maintenance procedures. If the spare parts need
adjustment or replacement, please contact our repair stuff.
Contactor
Polish the uneven contacts with abrasive paper
Replace when it functions badly
Motor
Wearing condition of carbon brush and communtator
Brake
Clean the dirt and dust on the brake friction plate; check the wearing condition
of friction plate
9.8 Maintenance after 1200 hours (every half a year)
For maintenance every half a year, repeat the maintenance procedures for every 3 months. If the spare
parts need adjustment or replacement, please contact our repair stuff.
Contactor
Polish the uneven contacts with abrasive paper
Replace when it functions badly
Motor
Wearing condition of carbon brush and commentator.
13
