PSU 0-10V DIMMING
(MIPSU01)
PSU FLEX
(MIPSU03)
Physical
Size (LxWxH)
426 x 180 x 70 mm
(16.8 x 7.1 x 2.8 in)
380 x 210 x 60 mm
(15.0 x 8.3 x 2.4 in)
Weight
6 kg (13.2 lbs)
excl. power supply
4 kg (8.8 lbs)
excl. power supply
Mounting Plus holes Chain
Electrical
Voltage Range
200 - 480 VAC 200 - 480 VAC
Frequency
50/60 Hz 50/60 Hz
Typical Power
Consumption
0-650 W 0-650 W
General
Temperature
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
IP Rating IP67 IP67
Lifetime >218 000 hrs >218 000 hrs
Controllable 0-10VDC or 10V PWM signal 0-10VDC, 10V PWM signal or WiFi*
Cooling Passive - Convection cooled Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum
Anodized Aluminum
Compliance CE, cETLus, and Damp Location CE, cETLus, and Damp Location

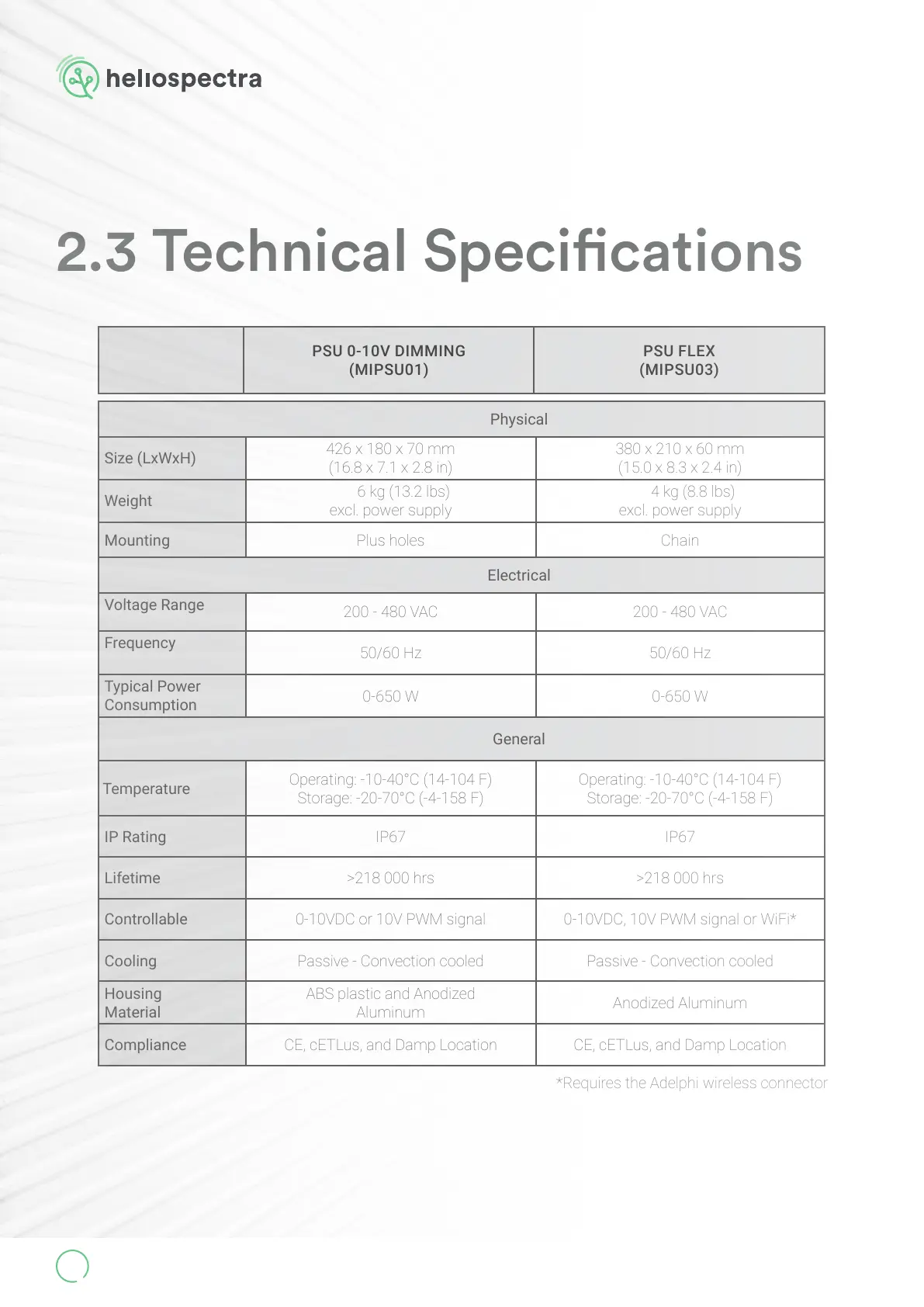

2.3 Technical Specications
*Requires the Adelphi wireless connector
www.heliospectra.com
12
