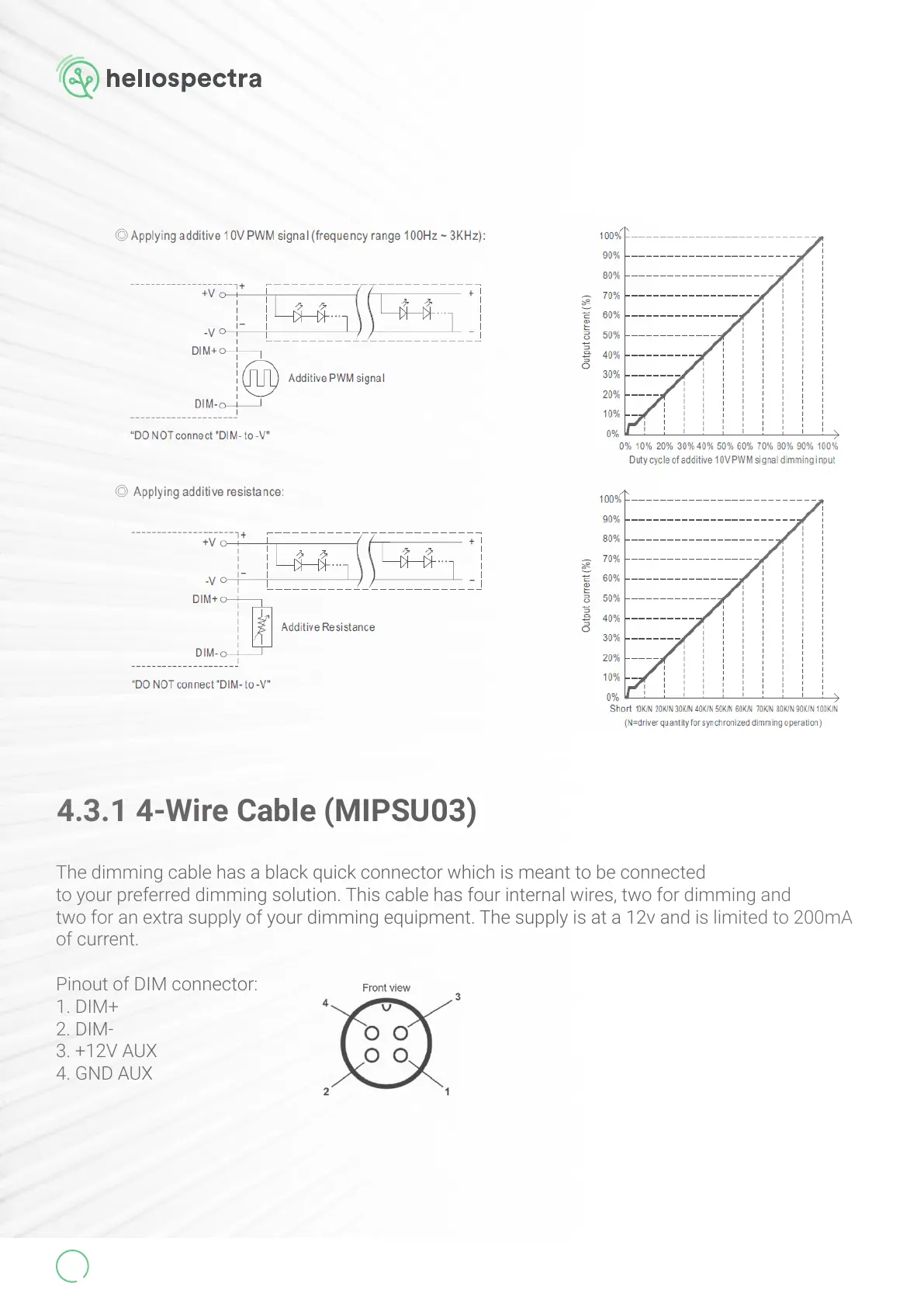

4.3.1 4-Wire Cable (MIPSU03)
The dimming cable has a black quick connector which is meant to be connected
to your preferred dimming solution. This cable has four internal wires, two for dimming and
two for an extra supply of your dimming equipment. The supply is at a 12v and is limited to 200mA
of current.
Pinout of DIM connector:
1. DIM+
2. DIM-
3. +12V AUX
4. GND AUX
