Heliospectra MITRA - Technical Specifications

MITRA SQUARE
(MI65SF, MI65SV, MI65SB)
MITRA LINEAR
(MI65LF, MI65LV, MI65LB)
Physical
Size (LxWxH)
580 x 630 x 88 mm
(22.8 x 24.8 x 3.5 in)
1100 x 340 x 88 mm
(43.3 x 13.4 x 3.5 in)
Weight
12 kg (26.5 lbs)
excl. power supply
13,5 kg (29.8 lbs)
excl. power supply
Mounting Hole Prole C-Bracket
Electrical
PSU Compatability
MIPSU01, MIPSU03, MIPSU04 MIPSU01, MIPSU03, MIPSU04
Typical Power
Consumption
0-650 W 0-650 W
General
Temperature
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Heat Value (BTU/h) Up to 2218 BTUs/h Up to 2218 BTUs/h
IP Rating IP67 IP67
Lifetime
>46 000 h
(rated life to 90% of initial photon ux)
>46 000 h
(rated life to 90% of initial photon ux)
Controllable 0-10VDC, 10V PWM signal or WiFi* (depending on PSU)
Cooling Passive - Convection cooled Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic
glass
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic
glass
Compliance CE, cETLus, and Damp Location CE, cETLus, and Damp Location

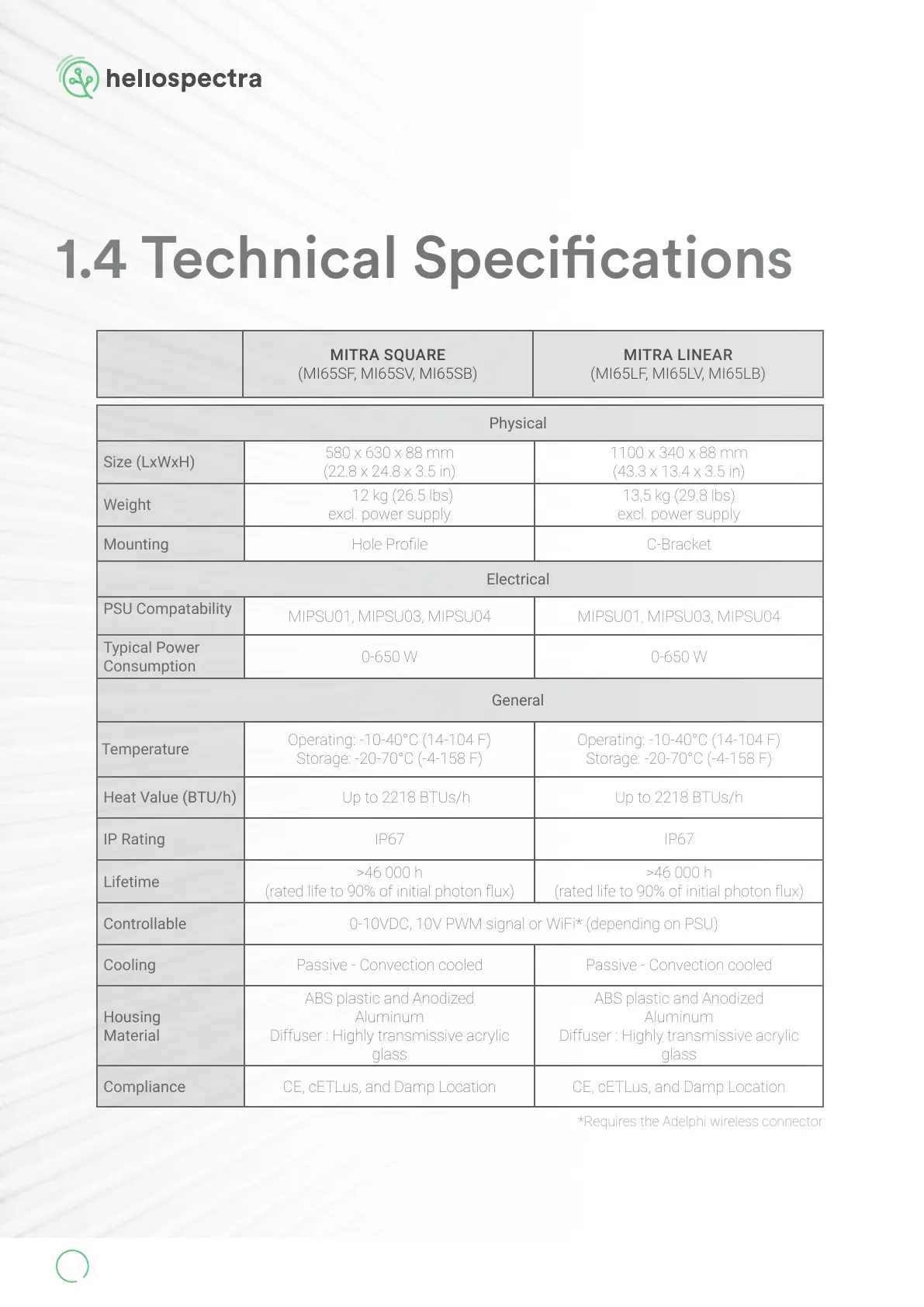

1.4 Technical Specications
*Requires the Adelphi wireless connector
*the width is given for one of the two lamp modules
**Requires the Adelphi wireless connector
