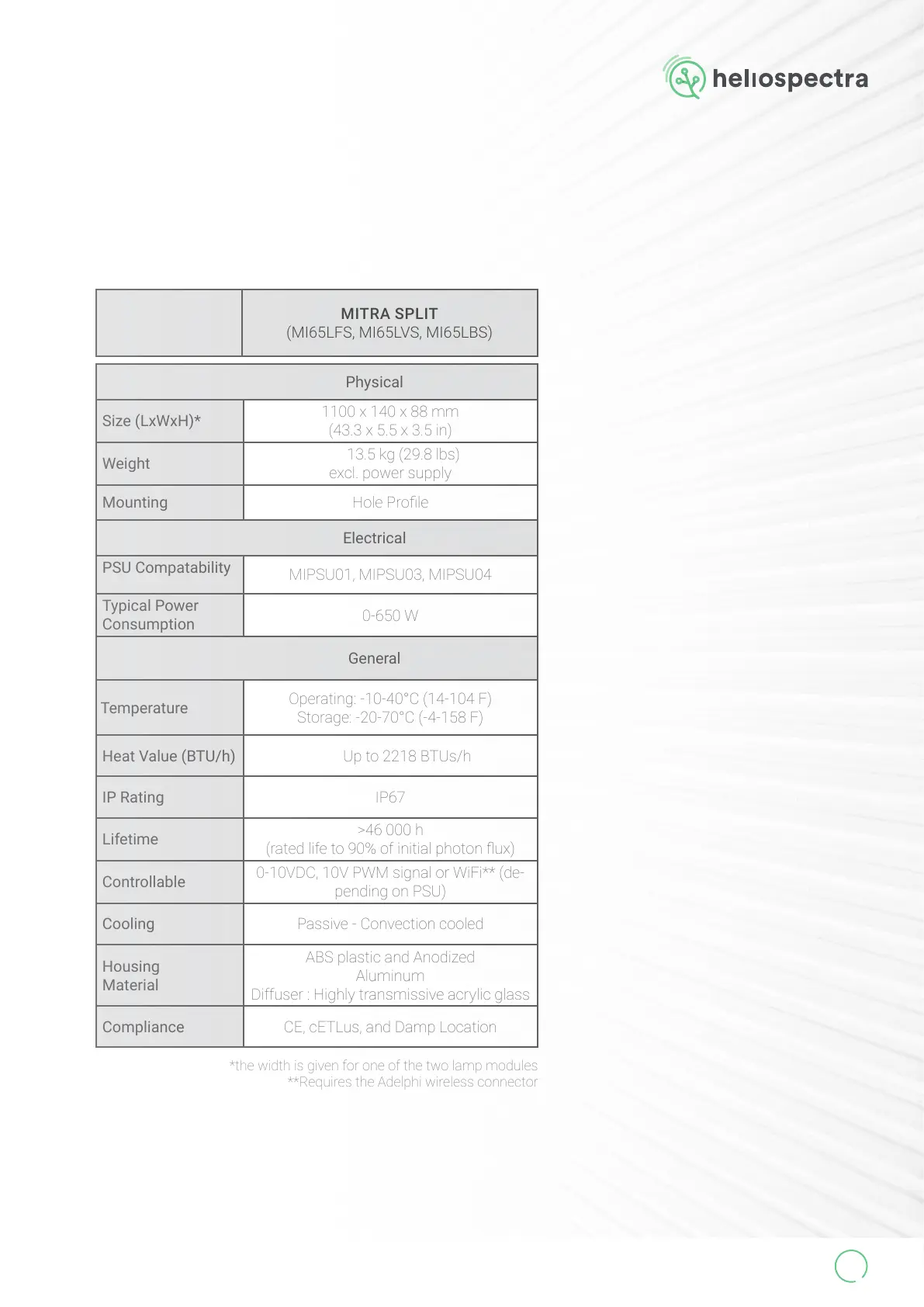

MITRA SPLIT
(MI65LFS, MI65LVS, MI65LBS)
Physical
Size (LxWxH)*
1100 x 140 x 88 mm
(43.3 x 5.5 x 3.5 in)
Weight
13.5 kg (29.8 lbs)
excl. power supply
Mounting Hole Prole
Electrical
PSU Compatability
MIPSU01, MIPSU03, MIPSU04
Typical Power
Consumption
0-650 W
General
Temperature
Operating: -10-40°C (14-104 F)
Storage: -20-70°C (-4-158 F)
Heat Value (BTU/h) Up to 2218 BTUs/h
IP Rating IP67
Lifetime
>46 000 h
(rated life to 90% of initial photon ux)
Controllable
0-10VDC, 10V PWM signal or WiFi** (de-
pending on PSU)
Cooling Passive - Convection cooled
Housing
Material
ABS plastic and Anodized
Aluminum
Diffuser : Highly transmissive acrylic glass
Compliance CE, cETLus, and Damp Location
*the width is given for one of the two lamp modules
**Requires the Adelphi wireless connector
MITRA User Manual
V. 2.2
9
