Heliospectra MITRA - Mitra Linear (Mi65 Lf, Mi65 Lv, Mi65 Lb)

NOTE!
When unpacking and installing your MITRA make sure to have a sturdy surface to work on.
Damage can occur to the light bar if dropped.
0.5m
0.5m
0.5m 0.5m
0.5m
2m
0.5m
LED Light Module
Center prole
Side mount
Cable T-connector
0.5m0.5m
0.5m 0.5m
1m
1.5m
Linear MITRA
Split Linear MITRA
Square MITRA
Side mount Cable T-connector
0.5m
0.5m
0.5m
0.5m
0.5m
0.5m
2m
LED Light Module
Side mount
Cable T-connector
LED Light Module
0.1m
1.8m
MITRA X
LED Light Module
PSU connector
PSU connector
PSU connector
PSU connector

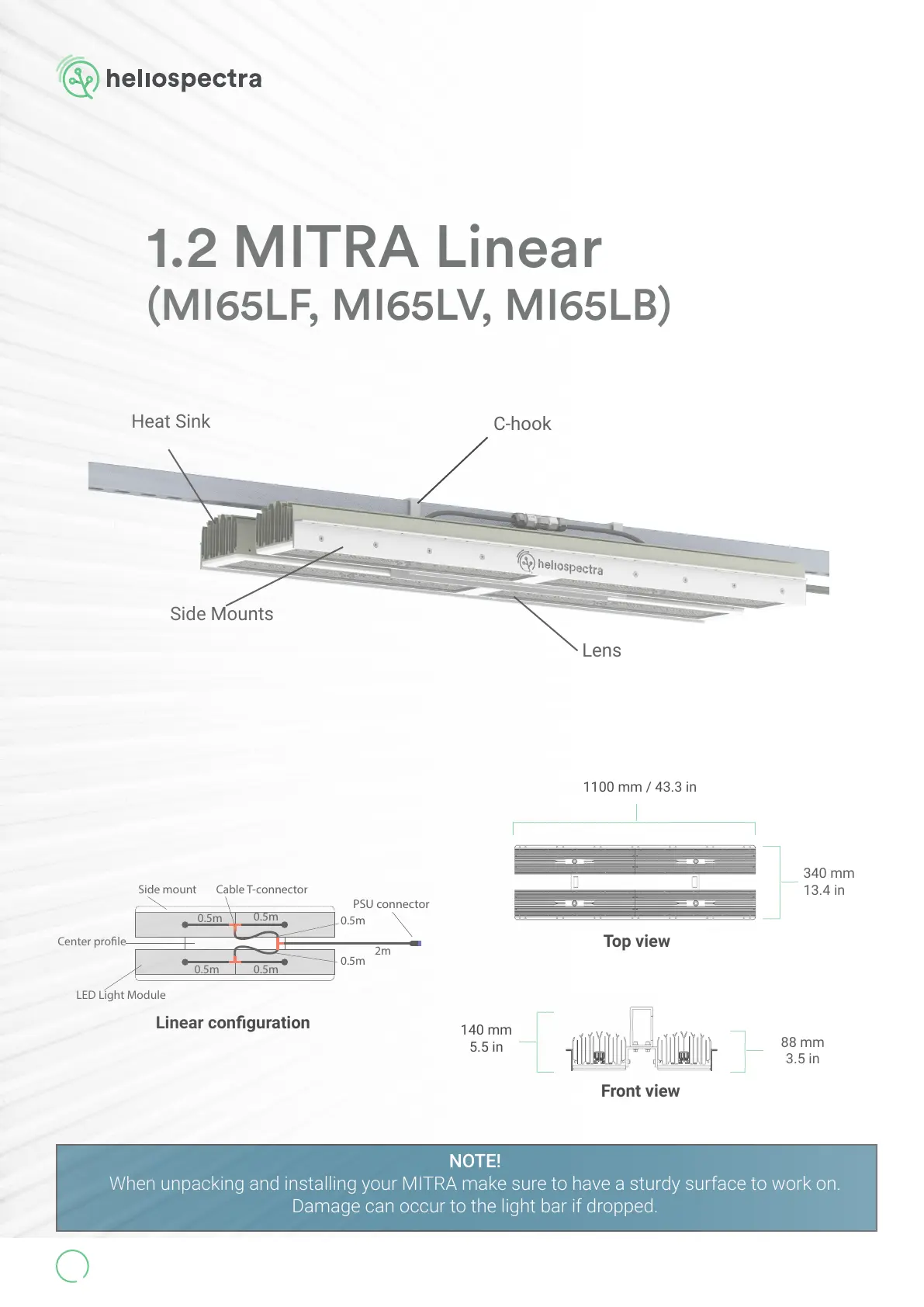

1.2 MITRA Linear
(MI65LF, MI65LV, MI65LB)
C-hook
Heat Sink
Side Mounts
Lens
1100 mm / 43.3 in
88 mm
3.5 in
340 mm
13.4 in
Top view
Front view
140 mm
5.5 in
Linear conguration
