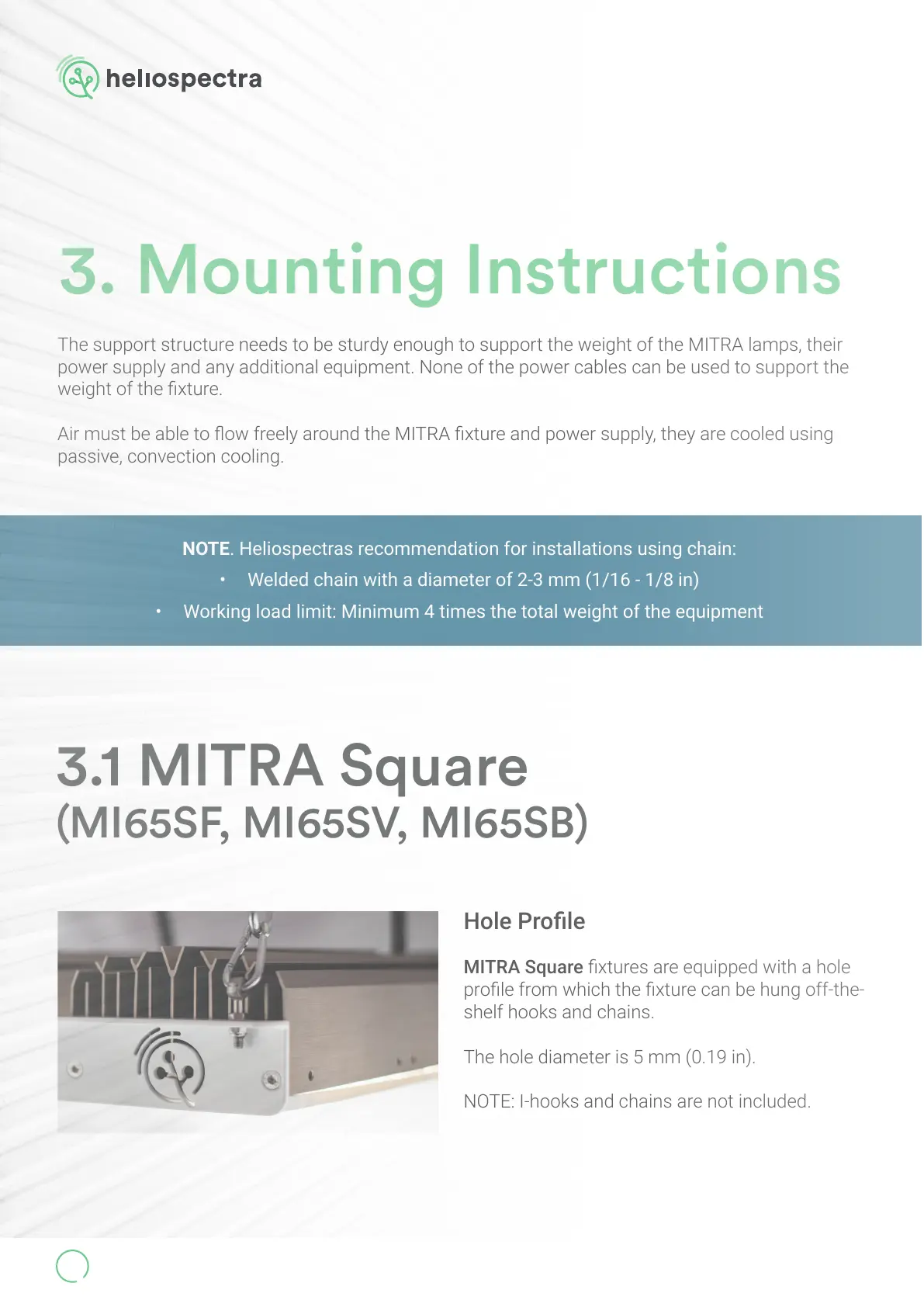

Heliospectra MITRA - Mounting Instructions; MITRA Square (MI65 SF, MI65 SV, MI65 SB)

3.1 MITRA Square
(MI65SF, MI65SV, MI65SB)
The support structure needs to be sturdy enough to support the weight of the MITRA lamps, their
power supply and any additional equipment. None of the power cables can be used to support the
weight of the xture.
Air must be able to ow freely around the MITRA xture and power supply, they are cooled using
passive, convection cooling.
Hole Prole
MITRA Square xtures are equipped with a hole
prole from which the xture can be hung off-the-
shelf hooks and chains.
The hole diameter is 5 mm (0.19 in).
NOTE: I-hooks and chains are not included.
3. Mounting Instructions
NOTE. Heliospectras recommendation for installations using chain:
• Welded chain with a diameter of 2-3 mm (1/16 - 1/8 in)
• Working load limit: Minimum 4 times the total weight of the equipment
