3.4 PSU 0-10V Dimming
(MIPSU01)
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:4.5:1 SHEET 2 OF 2
A0
WEIGHT:
MITRA manual PSU closeup
MITRA PSU
Standard
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
N N
P P
R R
T T
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
Cross Hole prole

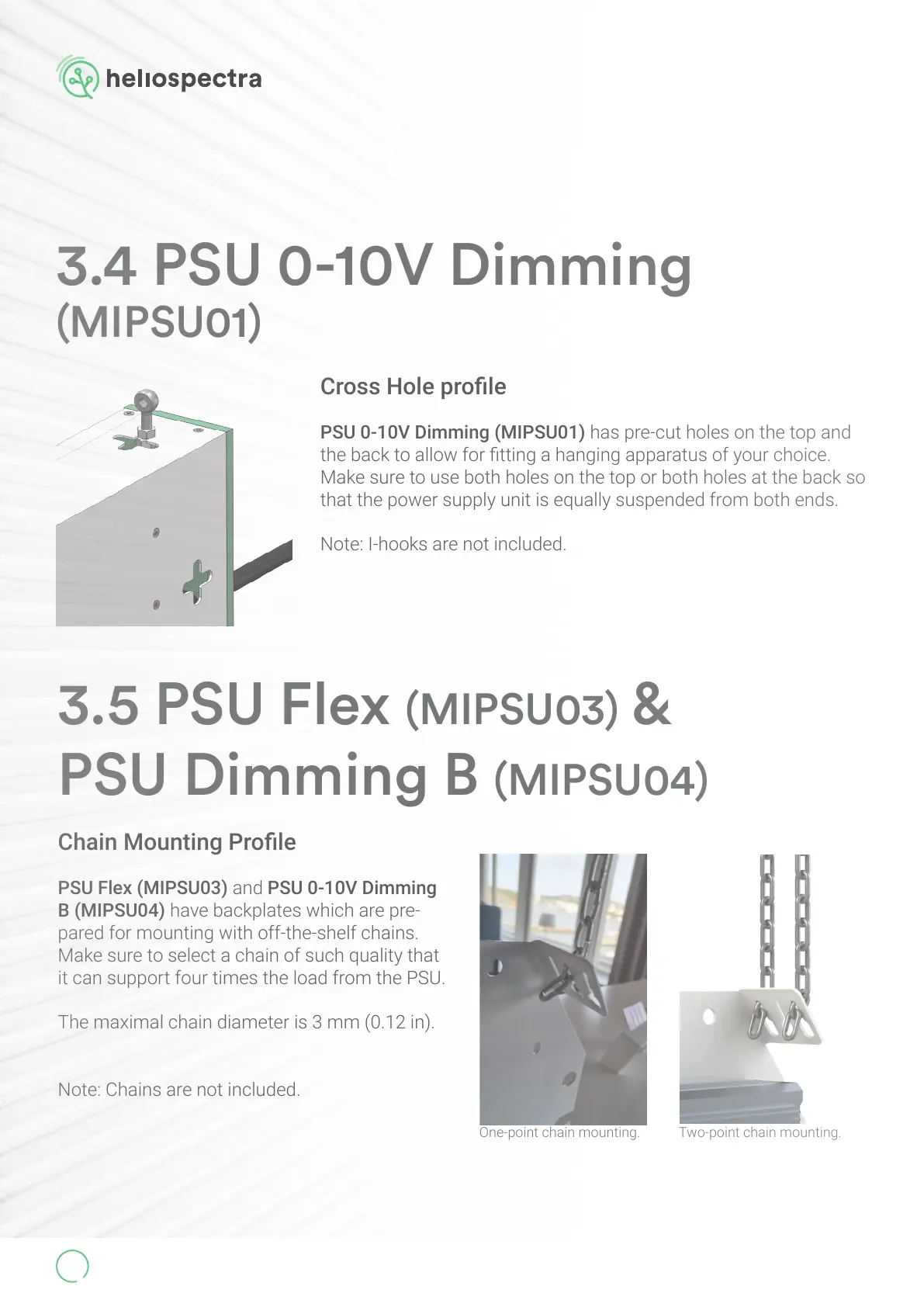

PSU 0-10V Dimming (MIPSU01) has pre-cut holes on the top and
the back to allow for tting a hanging apparatus of your choice.
Make sure to use both holes on the top or both holes at the back so
that the power supply unit is equally suspended from both ends.
Note: I-hooks are not included.
3.5 PSU Flex (MIPSU03) &
PSU Dimming B (MIPSU04)
Chain Mounting Prole
PSU Flex (MIPSU03) and PSU 0-10V Dimming
B (MIPSU04) have backplates which are pre-
pared for mounting with off-the-shelf chains.
Make sure to select a chain of such quality that
it can support four times the load from the PSU.
The maximal chain diameter is 3 mm (0.12 in).
Note: Chains are not included.
One-point chain mounting. Two-point chain mounting.
www.heliospectra.com
16
