HELIX P SIX DSP MK2 User Manual

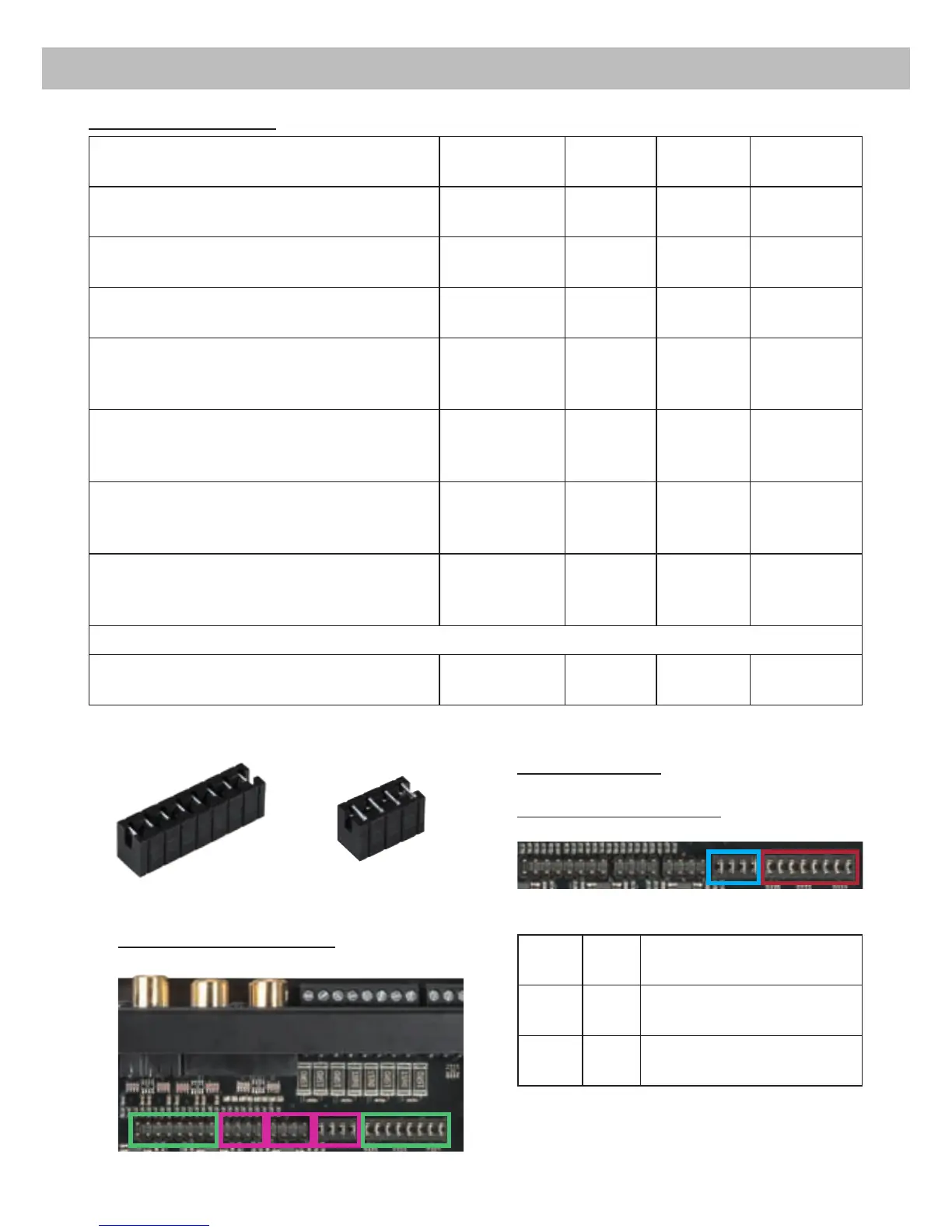

Overview plug-in positions:
Jumper positions:
Ex factory jumper positions:
Jum-
per
Posi-
tion
Value range
A 1 Highlevel A - D: 5 – 10 Volts
RCA A - D: 2 – 4 Volts
B 1 Highlevel E - F: 5 – 10 Volts
RCA E - F: 2 – 4 Volts
Jumper A Jumper B
A1B1A2 B3 B2
A1B1
20
Examples for adjusting:
Source Which input? Position
Jumper A
Position
Jumper B
Potentiome-
ter position
4-channel OEM radio
Up to 25 Watts RMS power each channel
Highlevel A-D A1 Optional Max. CCW
position
OEM radio with additional 4-channel amplier
Up to 100 Watts RMS power each channel
Highlevel A-D A2 Optional Max. CCW
position
OEM radio with additional 6-channel amplier
Up to 100 Watts RMS power each channel
Highlevel A-F A2 B2 Max. CCW
position
4-channel aftermarket radio without
pre-amplier outputs
Up to 25 Watts RMS power each channel
Highlevel A-D A1 Optional Max. CCW
position
4-channel aftermarket radio with pre-amplier
outputs
2 Volts pre-amplier output voltage
Lowlevel /
RCA A-D
A1 Optional Max. CW
position
4-channel aftermarket radio with pre-amplier
outputs
4 Volts pre-amplier output voltage
Lowlevel /
RCA A-D
A1 Optional Max. CCW
position
5/6-channel aftermarket radio with pre-ampli-
er outputs
8 Volts pre-amplier output voltage
Lowlevel /
RCA A-F
A2 B2 Max. CCW
position
Using the inputs E and F as an AUX input in the case of radios with four output channels
Smartphones, Tablets, MP3-Player, mobile
navigation systems, etc.
Lowlevel /
RCA E-F
See
above
B3 Max.CCW
position
Installation
