Hellenbrand ProMate 1 - Parts Identification and Assemblies

22
Item Description Qty Part #
1 Metered Control Valve 1 107253-PM1-32K
2 Top Diffuser 1 101539
3&4 Mineral Tank Assembly Item 3 only Item 4 only
Mineral Tank Distributor Assy
PM1-024 8 x 44 1 104535 101505
PM1-032 9 x 48 1 104539 101508
PM1-032-10 10 x 44 1 104548 101505
PM1-048 10 x 54 1 104554 101512
PM1-064 13 x 54 1 104567 101512
5 Ion Exchange Resin * 101123 *See Specications for amount, see page 29
6 Underbedding 100983
7-15 Brine Tank 18 x 33 1 104409
Brine Tank 18 x 40 1 104415
b 24x50 Salt Keeper Tank-Black 1 104497
9a Brine Tank Cover 18x40 1 101448
b Brine Tank Cover 24x50 Included with 8a
10-14 Safety Brine Valve Assy 50” 104173
10 Cap, Brine Well 2 101365
11* Safety Brine Valve 1 101274
12 Float Assembly 1 111853
13 Air Check 1 101181
14 a Brine Well 40”-41” 1 102877
b Brine Well 50” 102878
15 2-Piece Overow 1 102217
16 a Grid Plate 18” (optional) 1 101758
b Grid Plate 24” (optional) 1 101754
– Owners Manual (Not Shown) 1 106231
*Must be ordered as complete assembly

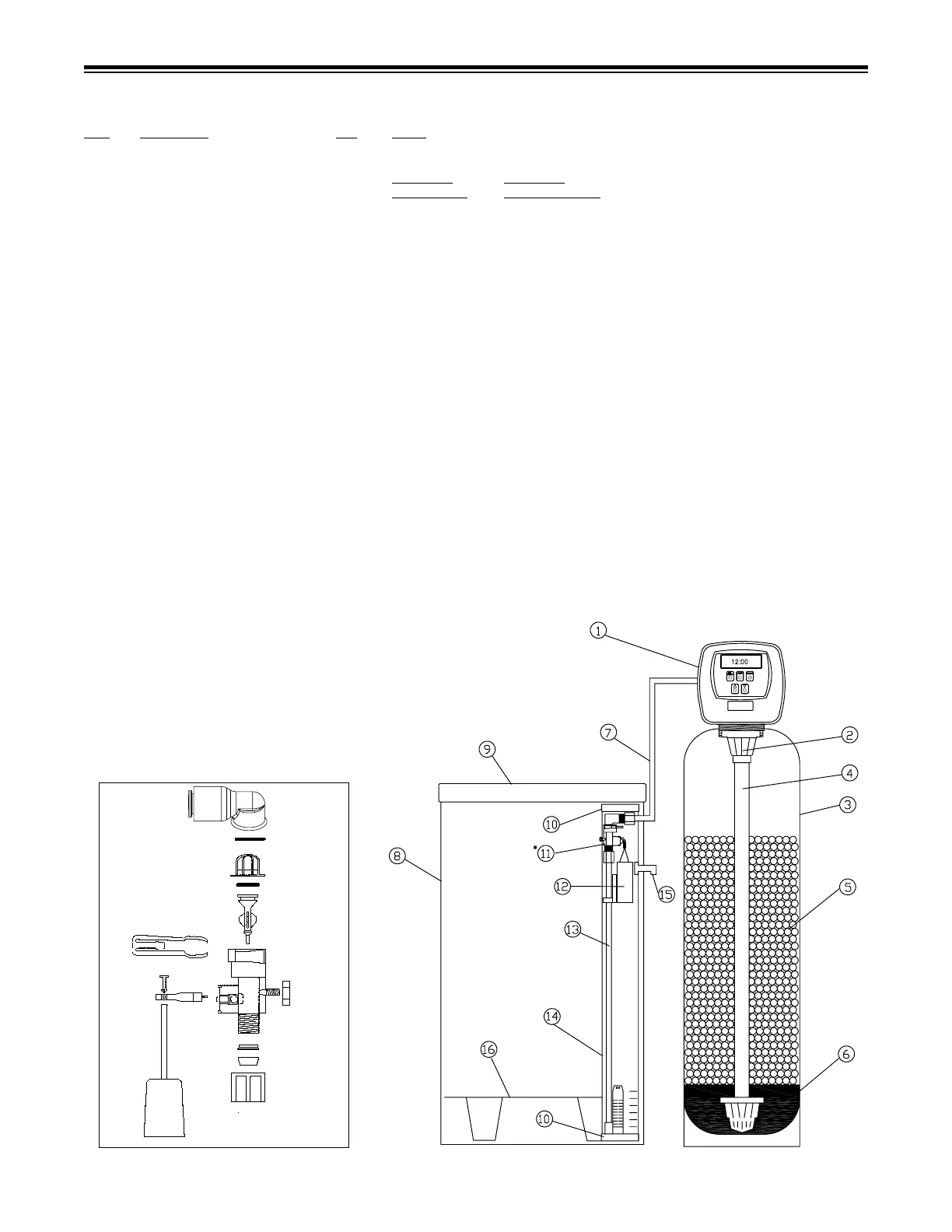

PROMATE-1
®
CONDITIONER & BRINE TANK ASSEMBLIES
*Safety Brine Valve (Item 11)
Drawing for service only
Must be ordered complete
