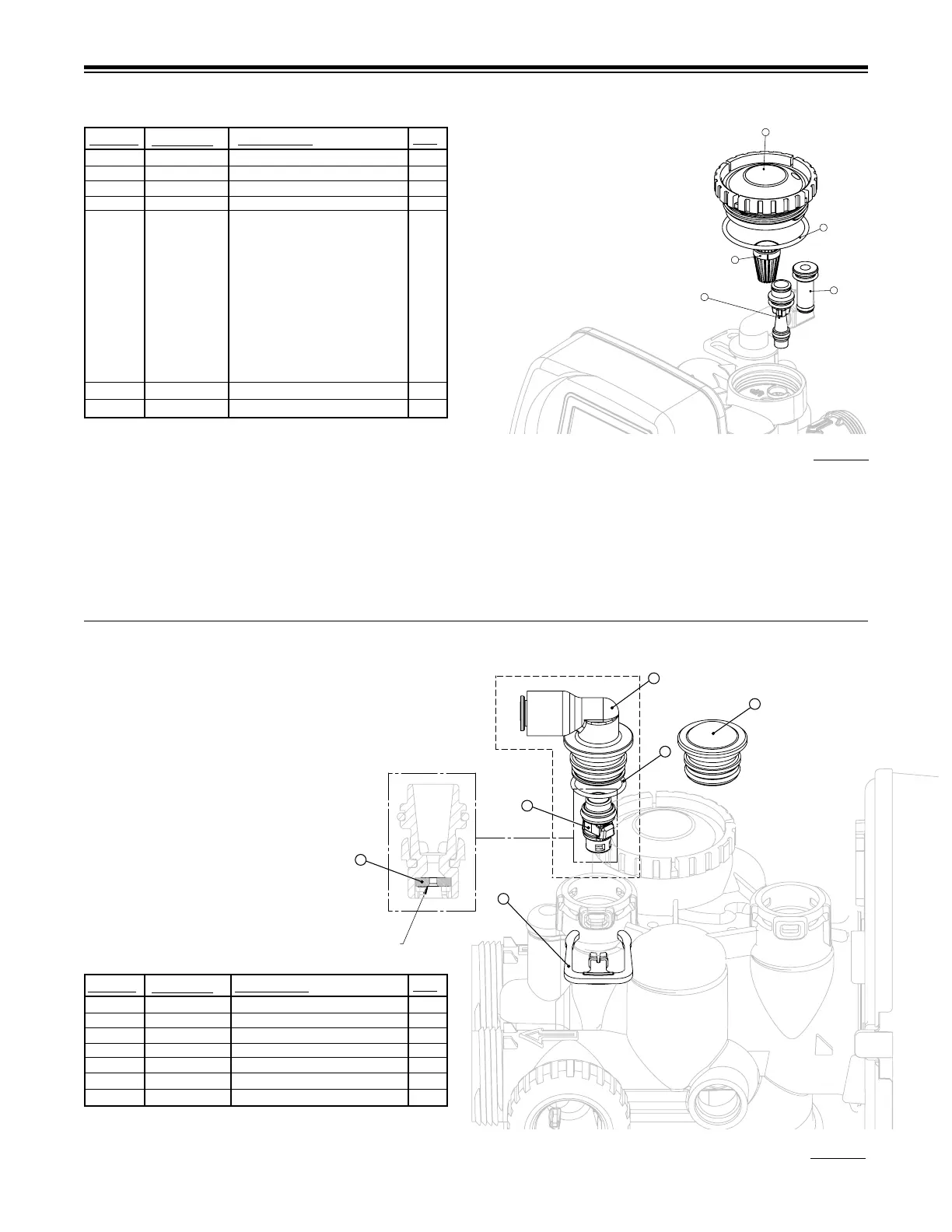

INJECTOR CAP, INJECTOR SCREEN, INJECTOR, PLUG AND O-RING

1 101375 Injector Cap 1

2 102159 O-ring 135 1

3 102457 Injector Screen 1

4 102319 Injector Assy. Z Plug-Filter 1

5 101825 Injector Assy. A Black 1

101826 Injector Assy. B Brown

101827 Injector Assy. C Violet

101828 Injector Assy. D Red

101829 Injector Assy. E White

101830 Injector Assy. F Blue

101831 Injector Assy. G Yellow

101832 Injector Assy. H Green

101833 Injector Assy. I Orange

101834 Injector Assy. J Light Blue

101835 Injector Assy K Light Green

Not Shown 106767 O-ring 011 *

Not Shown 106768 O-ring 013 *

QTY.

ITEM NO.

ORDER NO.

DESCRIPTION

* The injector plug and the injector each contain one 011 (lower) and 013

(upper) o-ring.

See system specication, injector color on page 28 for current injector.

Note: For upow position, injector is located in the up hole and injector

plug in the down hole. For a lter that only backwashes injector plugs are

located in both holes.

The nuts and caps are designed to be unscrewed or tightened by hand or with the special plastic wrench. If necessary a pliers can be used to unscrew the nut or

cap. Do not use a pipe wrench to tighten or loosen nuts or caps. Do not place screwdriver in slots on caps and/or tap with a hammer.

Do not use pipe dope or other sealants on threads. Teon tape must be used on threads of the 1” NPT connection and on the threads for the drain line connection.

Teon tape is not necessary on the nut connection nor caps because of o-rings seals.

Figure 16

Figure 17

REFILL AND REFILL PORT PLUG

*Assembly includes item #6.

**This part is required for backwash only systems.

1 102322 Rell Port Plug Assy.** 1

2 101414 Elbow Locking Clip 1

3 111389 Elbow 3/8" LiquiFit 1

4 102153 O-ring 019 1

5 102418* Rell Flow Cntrl Retainer Assy. 1

6 102421 Rell Flow Control Button 1
