Helmer iPF125 - I.series Parts; Appendix A

Helmer Scientic i.Series
®
and Horizon Series
™
Freezer - Upright Operation Manual
360369/A 25
Appendix A
i.Series
®
Parts

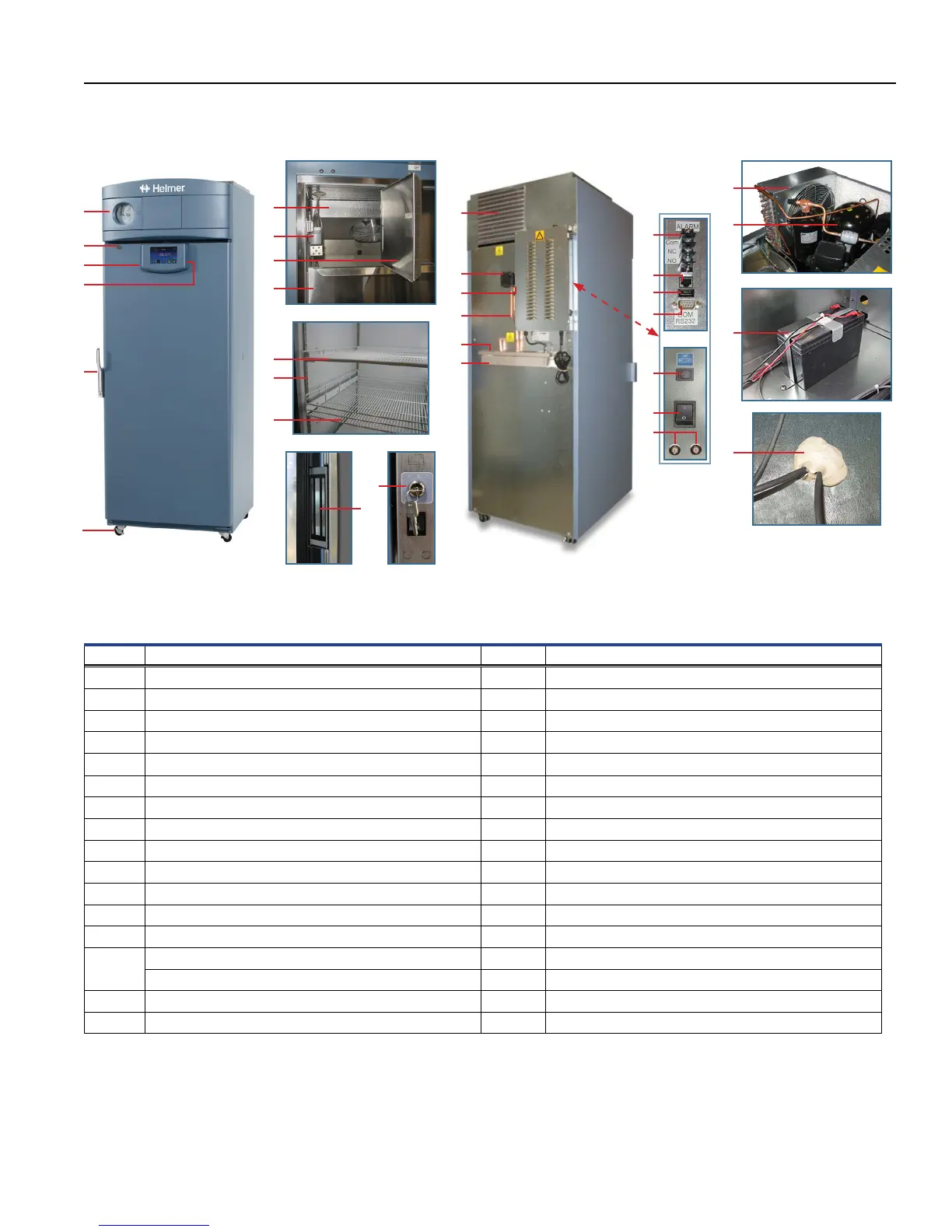

Table 9. i.Series Parts and Description
Letter Description Letter Description
A Temperature Chart Recorder * P Condenser grill
B Door lock Q Drain line fan
C i.C
3
control R Drain line heater
D USB port S Drain line
E Door handle with lock T Condensate evaporator
F Caster U Water evaporation tray
G Unit cooler with fan guard V Remote alarm interface
H Primary monitor probe bottle W RJ-45 Ethernet port
I Cold-Shield door (Plasma storage models) X USB port
J Drawer Y RS-232 COM port (optional)
K Shelf Z Back-up battery switch
L Standard AA Main power switch
M Roll out basket BB Circuit breakers (230 V only)
Not
Shown
Drawer/basket and slide CC Condenser
Secondary monitor probe bottle DD Compressor
N Back-up battery key switch (optional Access Control) EE Monitoring system back-up battery (and optional Access Control)
O Magnetic lock (optional Access Control) FF Access port (number and location vary by model)
* Temperature chart recorder is standard on plasma storage models, optional on laboratory models)
B
C
FF
A
EE
DD
CC
BB
AA
Z
Y
X
W
V
U
T
S
R
Q
P
O
N
M
L
K
J
I
H
G
F
E
D
