Helmer iPR120 - I.series Parts; Appendix A

Helmer Scientic i.Series
®
and Horizon Series
™
Refrigerator - Upright Operation Manual
360372/B 28
Appendix A

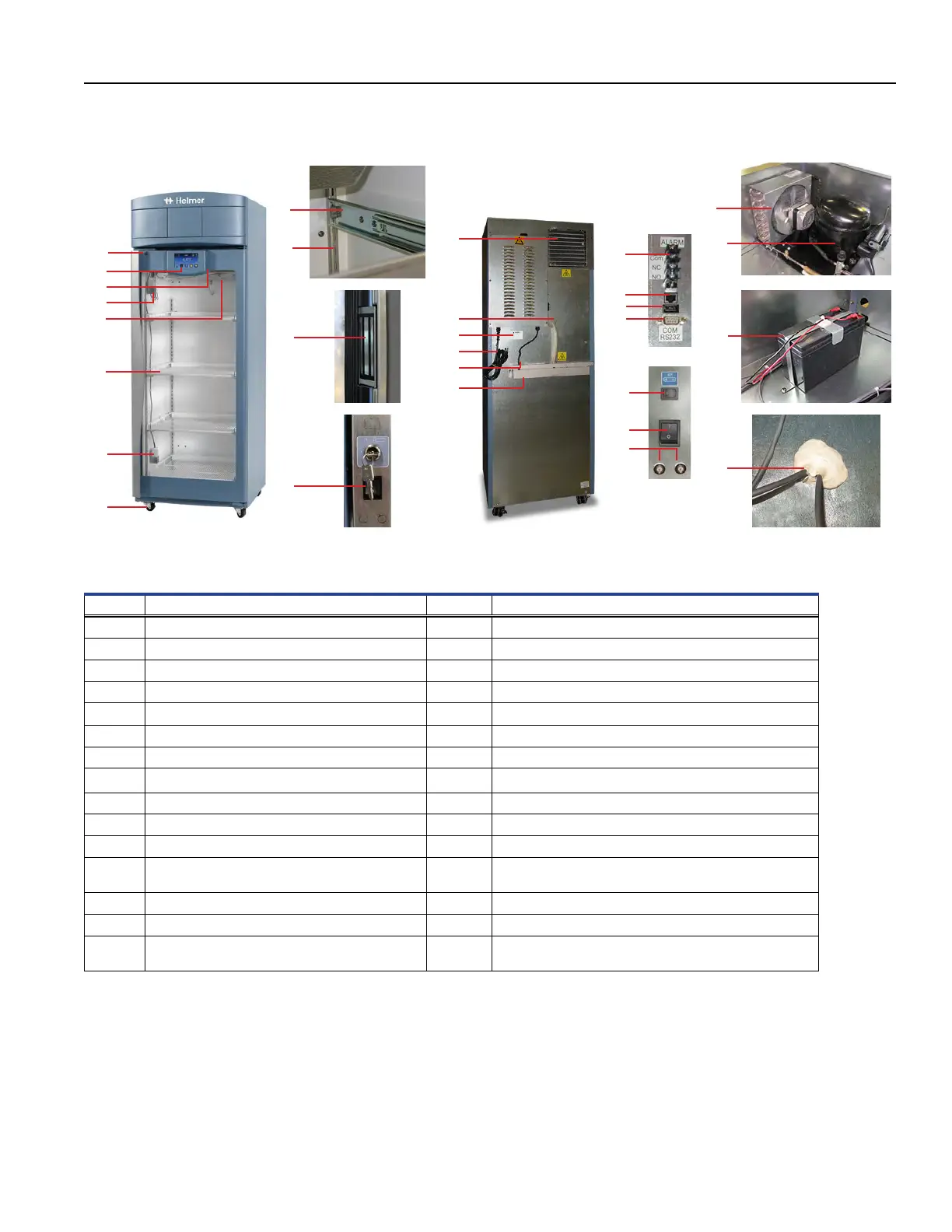

i.Series Parts
Table 10. i.Series Parts and Description
Letter Description Letter Description
A Door lock P Power cord
B i.C³ control Q Condensate evaporator
C USB port R Water evaporation tray
D Primary Monitor probe bottle S Remote alarm interface
E Unit cooler with fan guard T RJ-45 Ethernet port
F Shelf U USB port
G Secondary Monitor probe bottle (excluding 111 models) V RS-232 Com port (optional)
H Caster W Back-up battery switch
I Drawer/basket slide X Main power switch
J Standard for adjusting storage components Y Circuit breakers
(230V models)
K Magnetic lock (Access control optional feature) Z Condenser
L Back-up battery key switch
(Access control optional
feature)
AA Compressor
M Condenser grill BB Back-up battery
(Monitoring and optional Access Control)
N Drain line CC Access port
O Product specication label Not
shown
Chart recorder
(standard on blood bank models, optional on laboratory
and pharmacy models)
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
BB
CC
