Helmer iPR120 - Horizon Series Parts; Appendix B

Helmer Scientic i.Series
®
and Horizon Series
™
Refrigerator - Upright Operation Manual
360372/B 29
Appendix B
Horizon Series Parts

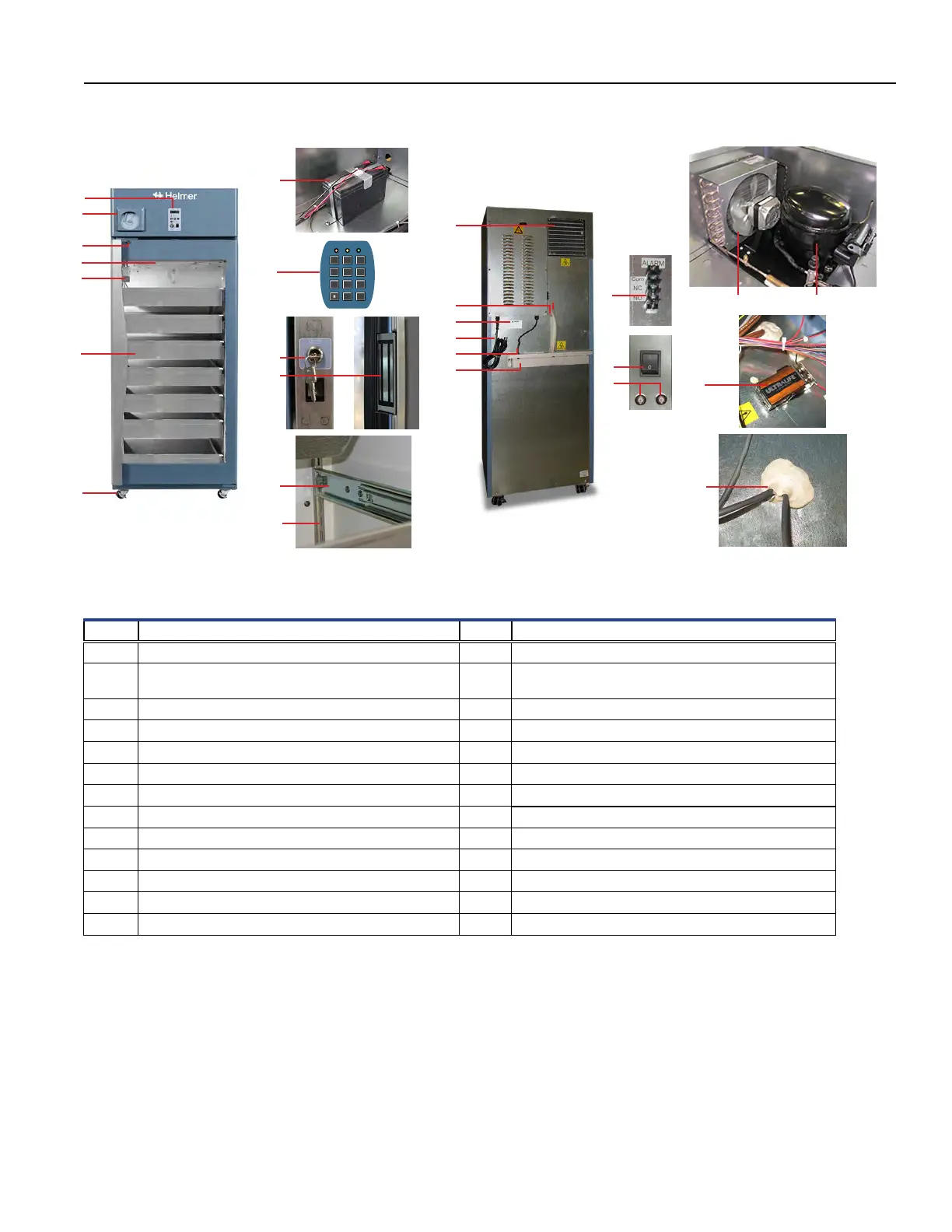

Table 11. Horizon Series Parts and Description
Letter Description Letter Description
A Horizon temperature monitor and control N Condenser grill
B Chart recorder
(standard on blood bank models, optional on
laboratory and pharmacy models)
O Drain line
C Door lock P Product specication label
D Unit cooler (evaporator) with fan guard Q Power cord
E Primary Monitor probe bottle R Condensate evaporator
F Drawer S Water evaporation tray
G Caster T Remote alarm interface
H Back-up battery
(Access control optional feature) U Main power switch
I Keypad
(Access control optional feature) V Circuit breakers (230V models)
J Back-up battery key switch (Access control optional feature) W Condenser
K Magnetic lock
(Access control optional feature) X Compressor
L Drawer/basket slide Y Monitoring system back-up battery
M Standard for adjusting storage components Z Access port
END OF MANUAL
321
654
987
#0
W X
A
B
C
D
E
F
G
J
K
L
M
H
I
N
O
P
Q
R
S
T
U
V
Y
Z
