Steering Controller and Tilt Compensation Installation -
The automated steering controller contains sensors for the yaw (left/
right turn) and roll (tilt side to side) axes so it is important to install it in
the appropriate orientation.
For proper operation, calibrate the tilt compensation sensor according
to the operator’s manual. Also, be sure to install the steering controller
on a level cab surface with the connectors facing left with regard to the
direction of travel.

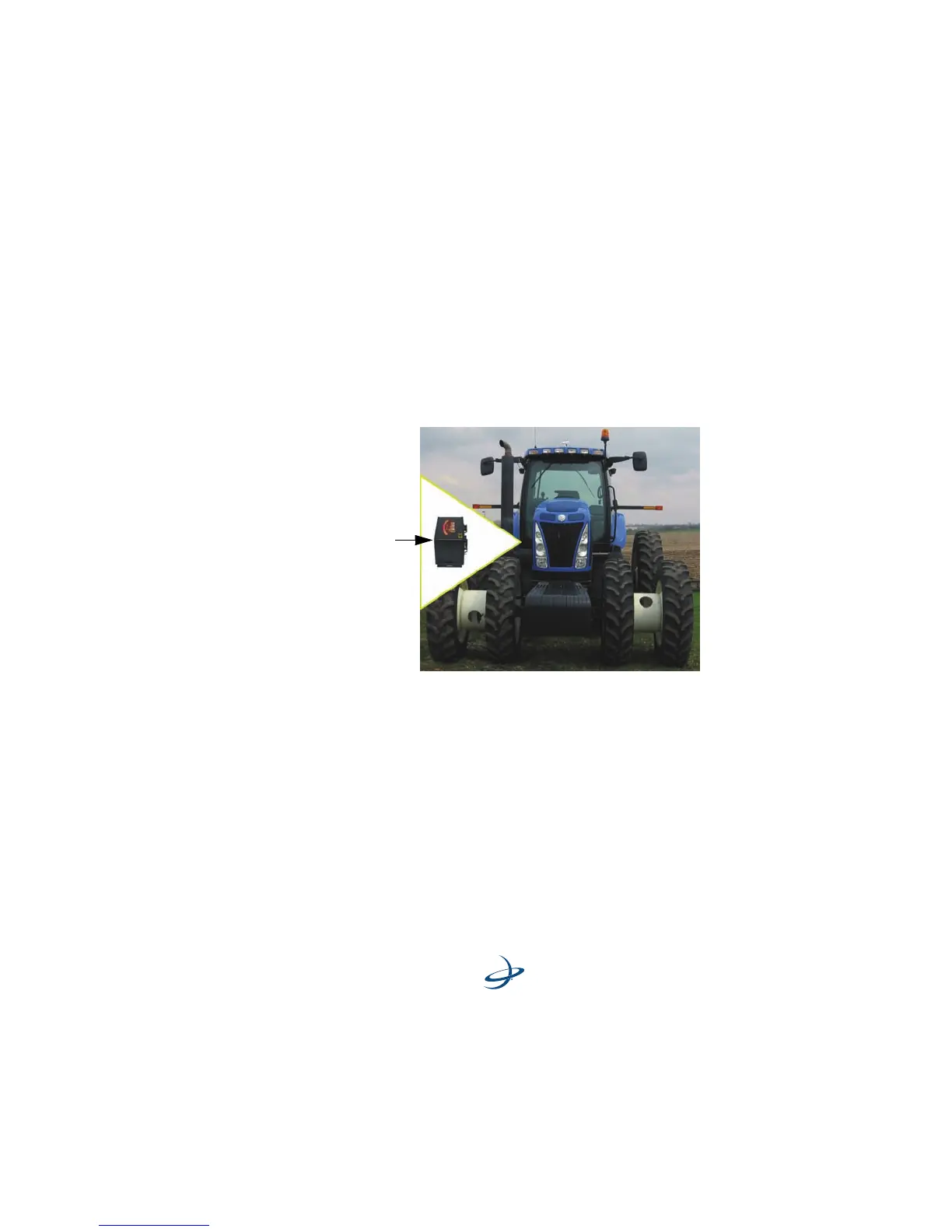

Figure 5-3. Mounted automated steering controller
The yaw (left/right turns) sensor needs special consideration when
choosing a mounting location. Install the steering controller as far
forward in the vehicle cab as possible in order to make the yaw sensor
more sensitive to turn rate (steering movements).
Automated steering
contoller must be mounted
on a level surface on the
front right corner of the
vehicle cab
