16
2: Getting Started
System Configuration
Configuration of the Outback eDriveTC is accomplished through the
menu system of either the Outback S2, or an external serial device.
During power-up, the eDriveTC is detected, and additional menu
options are included to configure the eDriveTC for operation.

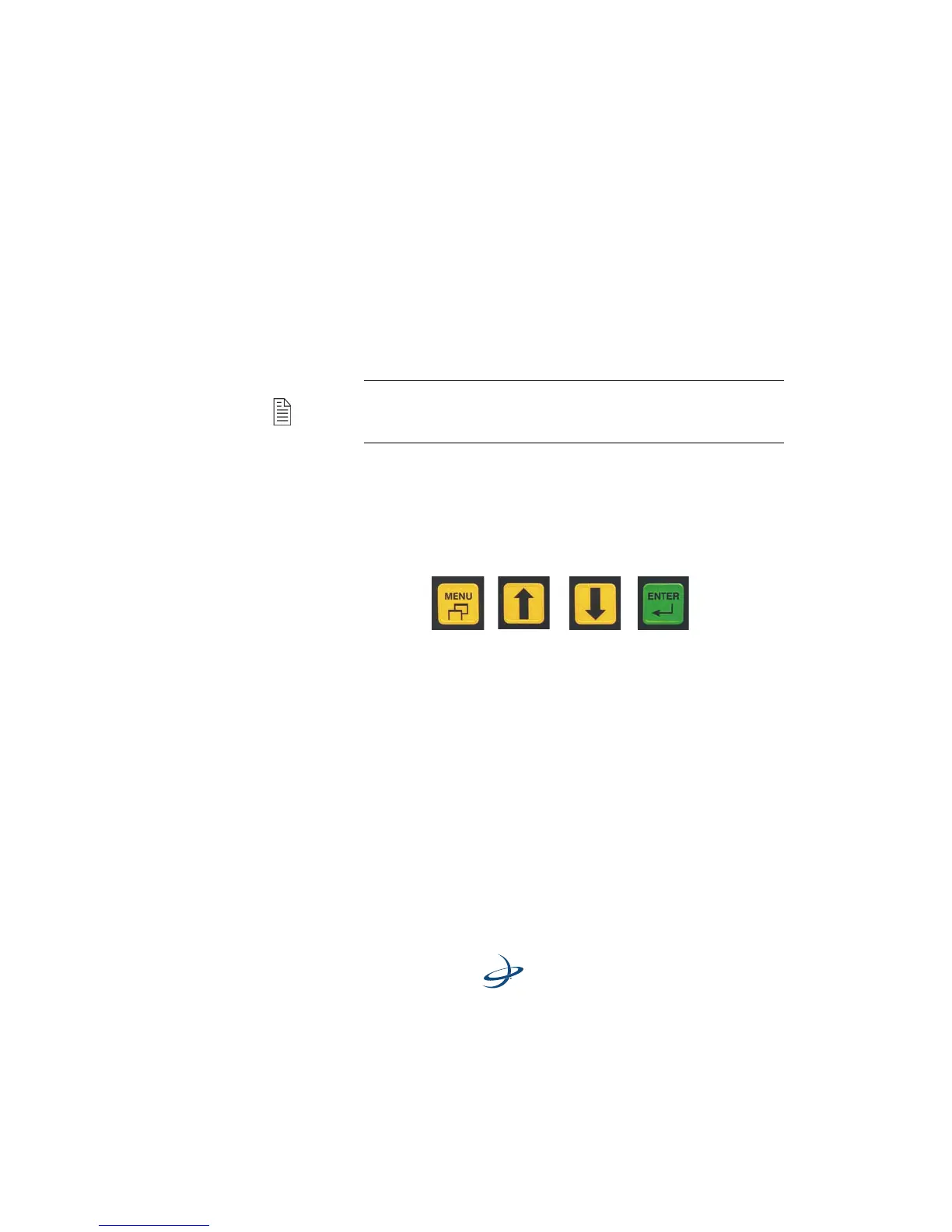

Using the menu
To access the menu, press the MENU button. Choose the item you want
using the UP and DOWN ARROW buttons. The > character points to the
active menu item. Press ENTER to select.
Initial system startup sequence
After completing the eDriveTC system installation, perform the
following startup sequence prior to field operation.
1. Select the eDriveTC STEERING ADJUST menu item. Press the
DOWN (left steer) arrow and verify steering moves left. Reverse
valve cable connections, or output hoses, if operation is backward.
2. Determine the cycle time and adjust the steering control rate. See
equipment specific installation manual for adjustment procedure
and suggested initial steering cycle time.
Note: Refer to the Menu Map in your S2’s owner manual to
determine the location of the eDriveTC Setup Menu on your
system.
