16

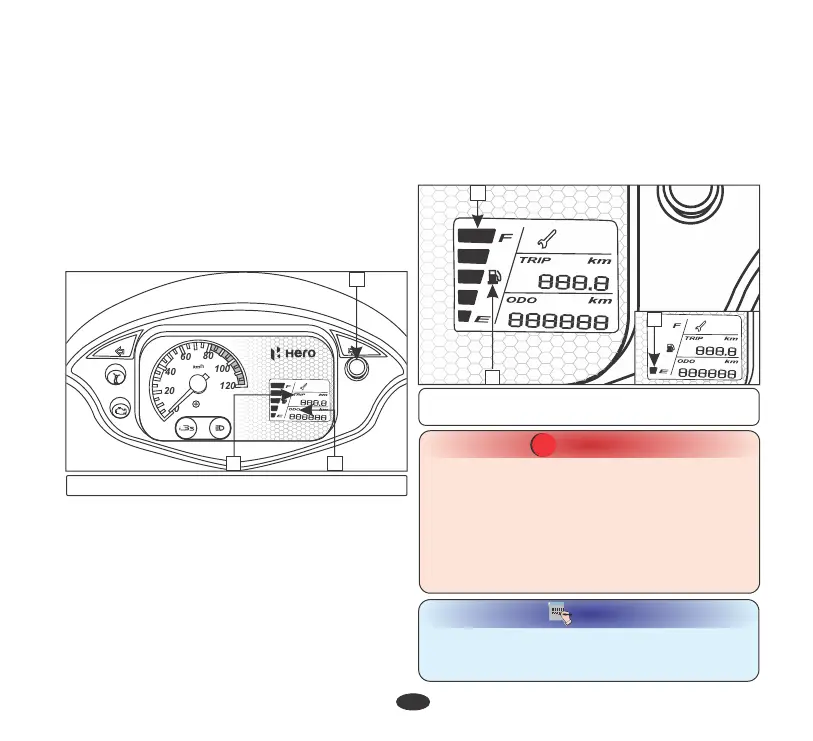

LCD panel
(a) Odometer/Tripmeter
(3) One Segments
(1) Fuel gauge (2) Segments
1
tripmeter exceeds "999.9" km it will return
to "0.0" km automatically.
When tripmeter is selected long press the reset
button (3) will reset tripmeter to zero.
The odometer displays from "0 to 999999" km
The odometer (1) shows accumulated
distance travelled.
The tripmeter (2) shows distance travelled
since trip meter was reset last time.
Tripmeter displays upto 999.9 km If the
(1) Odometer (2) Tripmeter (3) Reset button
1
3
2
CAUTION
!!
Please ensure the vehicle is not used
continuously when the fuel level indicator
reaches the one segment blinking. It will not
only result in the vehicle running out of fuel, it
may also cause serious damage to the fuel
pump. Please ensure fuel is filled up as soon as
the fuel level indicator reaches one segment
blinking.
NOTE
To check the fuel level indication, the vehicle
should be on levelled surface and in stationary
condition.
If all the segments are displayed it means fuel
quantity in the fuel tank is approximately 5.0
litres.
If only one segment (3) is displayed and start
blinking, this indicates that the fuel quantity is
low (approx 1 litre of fuel is available in fuel
tank). The fuel tank should be refilled as soon
as possible.
The fuel gauge (1) is of a Liquid Crystal
Display (LCD) type.
(b) Fuel gauge
The approximate amount of fuel quantity
available in the fuel tank is indicated by the
number of segments (2) in the display.
2
3
