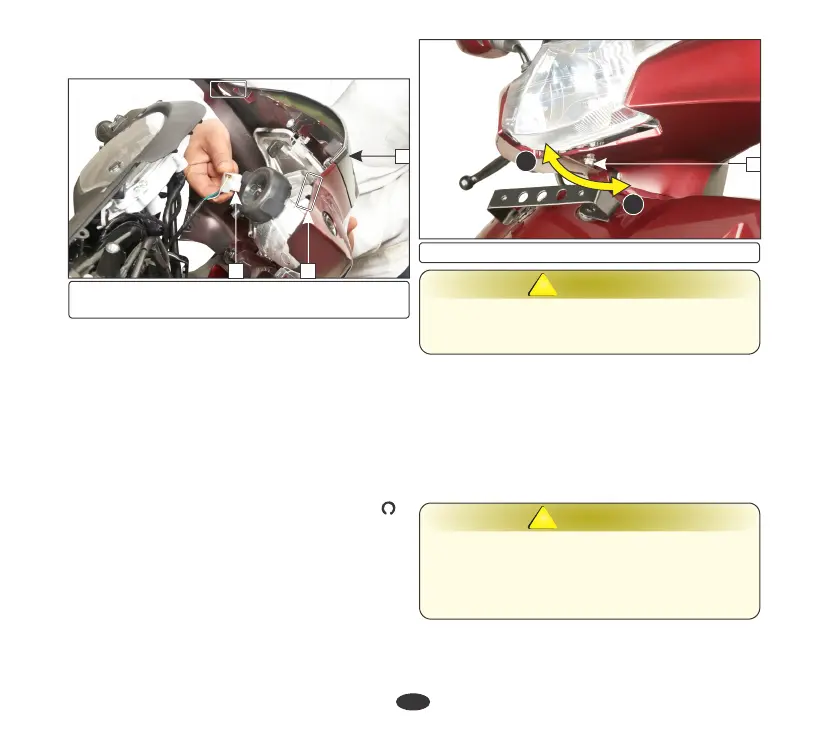

Disconnect the headlamp connector (7)
and remove the headlamp case.
(1) Bolt (A) Up (B) Down
A
B
1
41
(5) Headlamp assembly (6) Tabs
(7) Headlamp connector
6
WARNING
!!
An improperly adjusted headlamp may blind
oncoming rider/driver or it may fail to light
the road for safe distance.
PRE-RIDE INSPECTION
For your safety, it is very important to take a
few moments before each ride to walk
around your vehicle and check its condition.
If you detect any problem, be sure you take
care of it or have it corrected by your
Authorised Hero MotoCorp workshop.
WARNING
!!
• Improper maintenance or failing to correct a
problem before riding can cause a crash in
which you can be seriously injured.
• Always perform a pre-ride inspection before
every ride and correct if any problem.
Installation is in the reverse order of removal.
Installation
Headlamp focus is factory preset. However in
case of adjustment required please follow the
steps as given below.
•
Adjust the headlamp beam vertically by
loosening the bolt (1) and move the
headlamp up (A) or down (B) for correct
focus.
(g) Headlamp focus adjustment
•
Park the vehicle on its main stand on a
level surface in front of a wall.
•
Turn the ignition switch to “ON” ( )
position and start the engine.
Vertical adjustment
7
5
