60

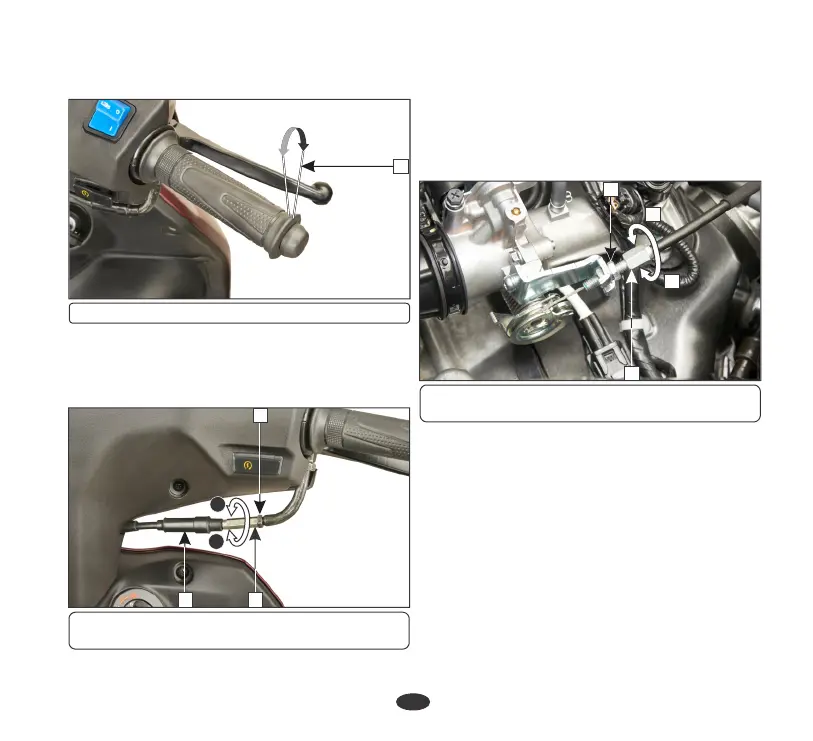

(a) At handlebar side
Free play adjustment
Slide the boot (2), loosen the lock nut (3) and
turn the adjuster (4).
(1) Free play: 2-6 mm
(b) At throttle body side
Remove the center compartment (page 30).
Loosen the lock nut (5). Turn the adjusting
nut (6) to obtain the specified free play.
Tighten the lock nut and check the adjustment.
(5) Lock nut (6) Adjusting nut
(A) Decrease free play (B) Increase free play
(2) Boot (3) Lock nut (4) Adjuster
(A) Decrease free play (B) Increase free play
4
If the specified free play is not achieved, adjust
the free play on throttle body side.
A
B
AIR CLEANER DRAIN TUBE CLEANING
Refer to the safety precautions (page 54).
•
Remove the drain tube (1) from the air
cleaner assembly (2) and drain deposits in
to a suitable container.
•
Reinstall the drain tube.
2
3
A
B
6
5
improperly routed, it should be replaced or
rerouted. Standard throttle grip free play (1)
is approximately 2-6 mm of grip rotation.
Service more frequently when riding in rain, at
full throttle or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
1
