(1) Side stand indicator
(n) Side stand switch/Side stand
(Optional in VX & LX models)

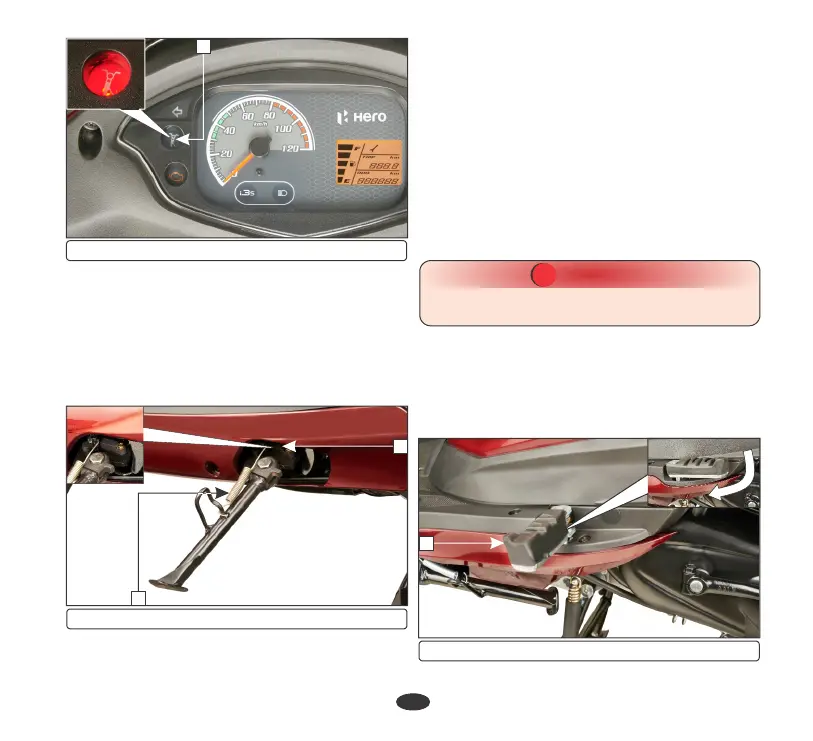

A side stand switch (2) is provided in the side
stand, when the side stand is down (Ignition
switch “ON”), the switch enables the side
stand indicator lamp to glow on the
speedometer panel.
(2) Side stand switch (3) Side stand spring
2
•
Check the side stand for proper function
and the spring (3) for damage or loss of
tension and the side stand assembly for free
movement.
•
When the side stand is up, the side stand
indicator (1) should not glow.
•
If the side stand indicator (1) does not
operate as described in above steps, please
visit your Authorised Hero MotoCorp
workshop.
•
Check whether the side stand indicator (1)
glows when the side stand is down.
(o) Pillion footrest
Move the left and right (1 & 2) footrest in the
direction shown by arrows to open. Folding
can be done by moving footrest in the reverse
direction.
CAUTION
!!
Ensure that adequate care should be taken
while cleaning the side stand switch.
(1) Left footrest
1
3
1
