(1) Left footrest
1
(2) Right footrest
2
(a) Center compartment
Removal
• Remove the bolts (2) and the fuel tank
cover (3).
• Remove the fuel filler cap (1).
• Open the seat (page 24).
BODY PARTS REMOVAL
•

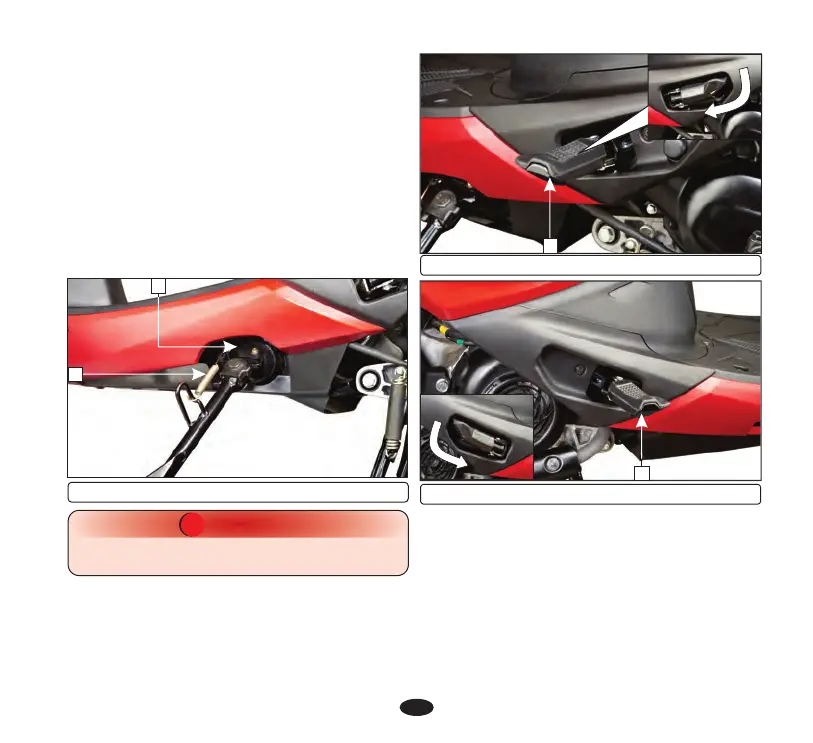

When the side stand is up, the side stand
indicator (1) should not glow.
•
Check whether the side stand indicator (1)
glows when the side stand is down.
speedometer panel.
•
Check the side stand for proper function
and the spring (3) for damage or loss of
tension and the side stand assembly for free
movement.
•
If the side stand indicator (1) does not
operate as described in above steps, please
visit your .Authorised Distributor/Dealer
2
(2) Side stand switch (3) Side stand spring
CAUTION
!!
Ensure that adequate care should be taken
while cleaning the side stand switch.
3
(l) Pillion footrest
Move the left and right (1 & 2) footrest in the
direction shown by arrows to open. Folding
can be done by moving footrest in the reverse
direction.
