HERO PLEASURE+ - Body Parts Removal; Panel and Cover Removal

29
•
Disconnect boot lamp connector (7).
NOTE
Park the vehicle on its main stand when servicing
the vehicle with the center compartment
removed.
(7) Boot lamp connector
7
•

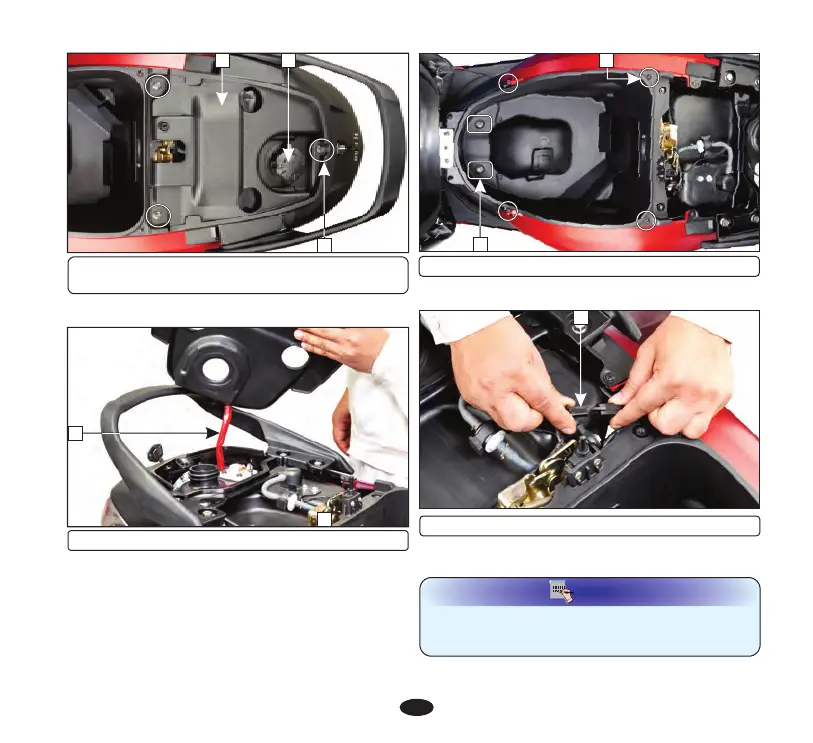

Remove center compartment (8).
(5) Screws (6) Bolts
5
6
(1) Fuel filler cap (2) Bolts
(3) Fuel tank cover
2
3
•
Remove the drain pipe (4).
•
Install the fuel filler cap (page 17).
•
Remove the center compartment screw (5)
and bolts (6)
(4) Drain pipe
1
4
