32

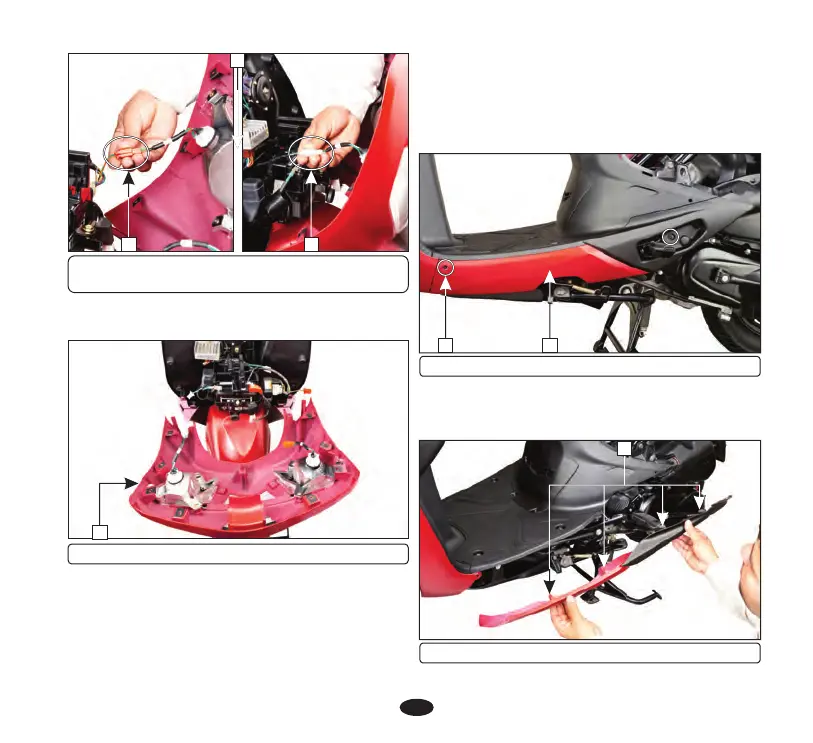

(f) Floor side cover
Removal
•
Open the pillion footrest (page 28).
•
Remove the two screws (1) from left and
right side of the floor side covers (2).
•
To dislodge the tabs (3), slide the floor side
covers to the rear side and pullout the floor
side cover.
1
(1) Screws (2) Floor side cover
2
(3) Tabs
3
3
(3) Left turn signal lamp connector
(4) Right turn signal lamp connector
3
•
Remove the front upper cover (5) by
dislodging the tabs.
4
(5) Front upper cover
5
Installation
Installation is in the reverse order of removal.
