HERO PLEASURE+ - Bulb Replacement; Headlamp and Front Turn Signal Bulb Replacement

61

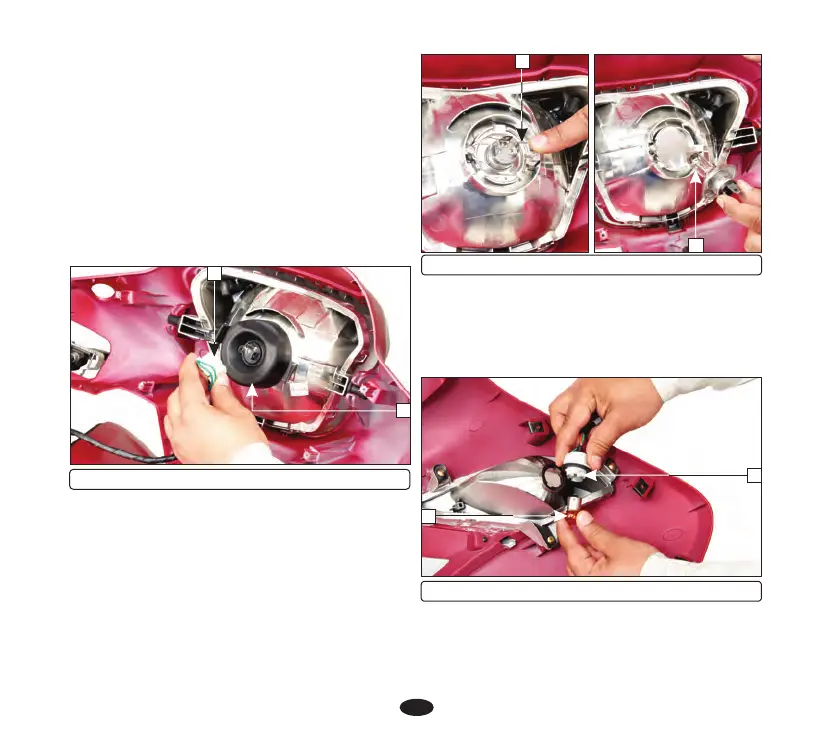

(1) Headlamp connector (2) Dust cover
1
2
(3) Clip (4) Headlamp bulb
•
Do not use bulbs other than specified.
it with a cloth moistened with alcohol to
prevent its early failure.
•
Be sure to turn the ignition switch “OFF”
when replacing the bulb.
(a) Headlamp bulb
•
Remove the headlamp case (page 33).
•
Disconnect the headlamp connector (1).
•
After installing a new bulb, check that the
lamp operates properly.
•
Remove the dust cover (2).
•
Release the clip (3) from its position.
•
Remove the headlamp bulb (4) without
turning.
•
Install a new bulb in the reverse order of
removal.
•
Install the headlamp case (page 33).
(1) Bulb holder (2) Front turn signal bulb
•
Install a new bulb in the reverse order of
removal.
•
Install the front upper cover (page 31).
(b) Front turn signal bulb
•
Remove the front upper cover (page 31).
•
Remove the bulb (2) by turning it to
anticlockwise direction.
•
Remove the bulb holder (1) with the bulb.
2
3
4
1
