“OFF” ( ) position
FUEL VALVE

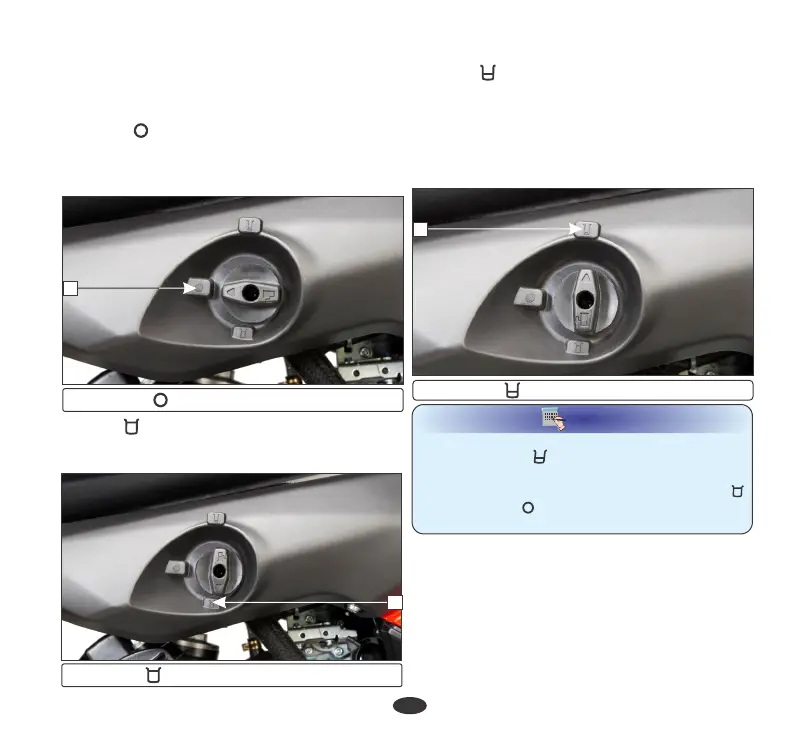

The three way fuel valve is on the left side of
the carburetor.
At “OFF” position (1) , fuel cannot flow from
the tank to the carburetor. Turn the valve
“OFF” whenever the vehicle is not in use.
(1) “OFF” ( ) position
1
2
(2) “ON” ( ) position
“ON” ( ) position
At “ON” position (2), fuel will flow from the
tank to the carburetor.
(3) “RES” ( ) position
NOTE
•
Do not operate the vehicle with the fuel valve
in the “RES” ( ) position after refilling. You
may run out of fuel, with no reserve.
•
Do not keep the fuel valve between “ON” ( )
and “OFF” ( ) position while driving, since
this may drain reserve fuel from the tank.
3
Use the reserve fuel only when the main supply
is exhausted. Refill the tank as soon as possible
after switching to "RES". The reserve fuel supply
is 2.0 litres (1.4 litres-usable reserve).
“RES” ( ) position
At "RES" position (3), fuel will flow from the
reserve fuel supply to the carburetor.
Location : On the rear left side of the seat,
below the rear cowl.
Operation : Insert the ignition key (1) and
turn it clockwise. Pull the knob (2) downwards
to release the seat. To install, engage the hook
on the underside of the seat with the frame
and push on the top rear side of the seat until
SEAT LOCK/HELMET HANGER
