44

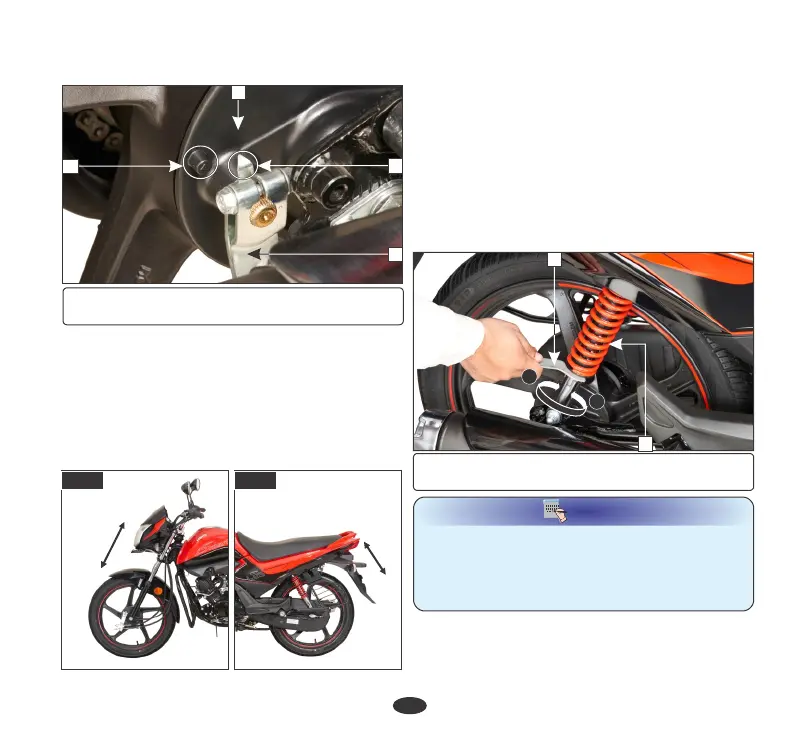

Rear brake wear indication
4
2
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
1
Front and rear suspension inspection
•
Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no
oil leakage.
SUSPENSION
Front Rear
Rear shock absorber adjustment can be made
according to the load/road conditions.
• In direction A: Stiffer
Rear shock absorber adjustment
• In direction B: Softer
• Check the rear shock absorber by pushing
hard downwards on rear grip while the
vehicle is not parked on stand. The
suspension action should be smooth and
there should be no oil leakage.
B
A
(1) Rear shock absorber (2) Pin spanner
(A) Stiffer (B) Softer
2
1
NOTE
Always adjust both the rear shock absorbers to
the same position. To adjust the rear shock
absorber (1), use the rear shock absorber
adjustment tool (Pin spanner) (2) available in
the tool kit.
3
