32

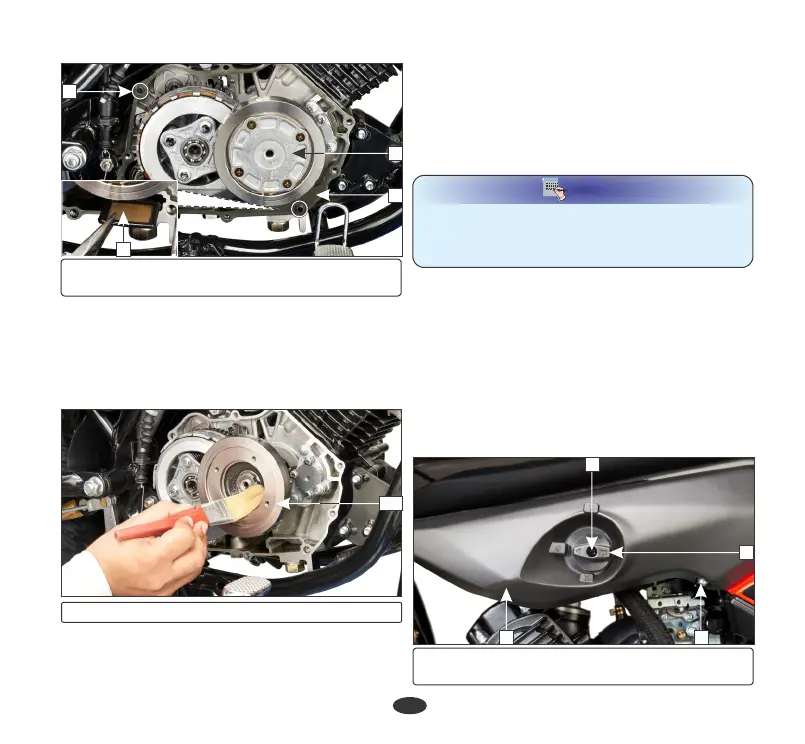

(6) Gasket (7) Dowel pins
(8) Oil filter screen (9) Centrifugal filter cover
8
7
6
9
•
Reinstall the oil filter screen with the sharp
edged side facing inwards.
•
Remove centrifugal filter cover (9) with
gasket & clean the centrifugal filter (10)
with non flammable or high flash point
solvent (kerosene).
• Reinstall the dowel pins, new gasket,
• Reinstall the centrifugal filter cover with new
gasket.
(10) Centrifugal filter
10
• Adjust the clutch cable free play, if required
(page 37).
crankcase cover, kick starter pedal and
clutch cable.
• Fill the crankcase with clean engine oil as
per specification.
•
Ensure to replace gasket with new one once
removed.
•
Clean filters as specified in the maintenance
schedule.
NOTE
AIR CLEANER
The air cleaner element is viscous type, it
should be replaced at regular intervals
(page 26). Early replacement may be
Air cleaner element inspection
required when riding in unusually wet or dusty
area.
•
Remove the fuel valve lever (1) by
removing the screw (2).
•
Remove the seat (page 19).
1
(1) Fuel valve lever (2) Fuel valve lever screw
(3) Left front cover (4) Left front cover screw
4
2
3
