41
Check the drive chain slider (1) for wear, the
reached. For replacement, visit your
Authorised Hero MotoCorp workshop.
(Refer to “Maintenance Schedule” on
(page 26).
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is

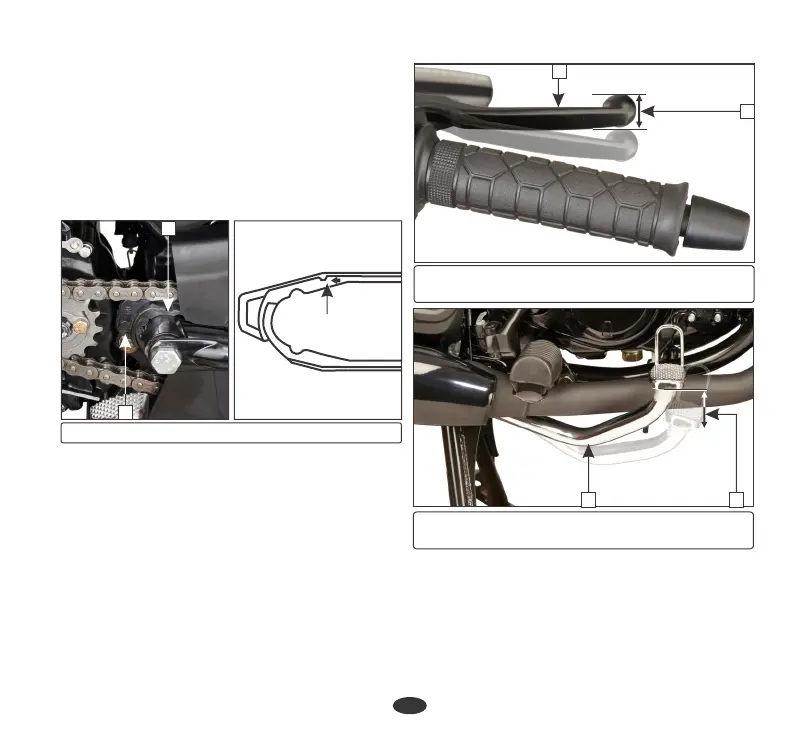

DRIVE CHAIN SLIDER INSPECTION
(1) Drive chain slider (2) Wear limit
2
1
1
3
BRAKES
Brakes are items of personal safety and should
always be maintained with proper
adjustments.
When one applies the Integrated/Rear brake
pedal, front & rear brakes activate jointly.
The distance, the front brake lever (1) and
integrated brake pedal (2) moves before each
(a) Brakes (Integrated braking system)
brake starts to engage is called free play (3).
Ÿ Push the integrated brake arm (4) by hand
in the direction as shown.
(b) Front brake cable (A) on “F” side
Adjustment
Ÿ Turn the first adjuster nut (5) till you cannot
turn it by hand.
1
2
(2) Integrated/Rear brake pedal
(3) Free play 20-30 mm
(1) Front brake lever
(3) Free play 10-20 mm
3
